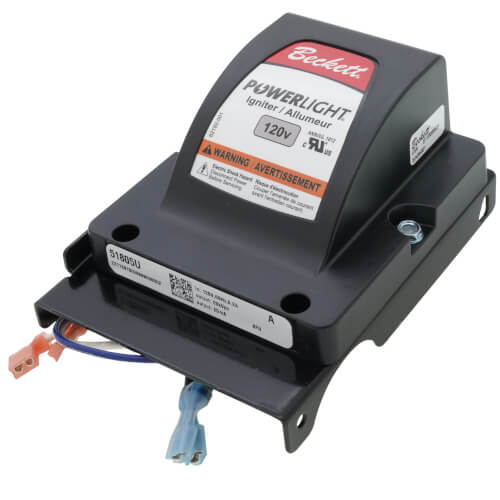

Electronic Oil Igniter with AFII Base

Note: LICENSED CONTRACTOR REQUIRED
This product must be installed by a qualified and licensed contractor using properly calibrated combustion test equipment. Failure to adhere to this requirement may result in significant property damage, serious personal injury, or death.

• UL recognized in the US and Canada.
• 20 kV peak rating guarantees quick and efficient ignition.
• Small size and lightweight (approx. 1.1 lbs.).
• A vacuum encapsulation process using a synthetic resin provides resistance to moisture and excellent heat dissipation and electrical insulation.
• Case material is a high-temperature thermoplastic that provides high impact strength and scratch resistance, and is impenetrable to most chemicals.
• Adapts to multiple baseplates--making it the most versatile unit on the market...it will also fit on many other vendors' transformer baseplates.
• Case design has 'breakout' sections at the rear and side for lead wire exit and a hood to neatly cover and protect these wires where required.

• Input: 120 VAC, 60 Hz, 35 VA
• Output Voltage: 6 kV RMS, 20kV Peak
• Output Current: 35 mA RMS
• Secondary Mid-point Ground Ambient Operating Temperature: -20° to 150°F
• Storage Temperature: -40° to 150°F
