Please check the Manuals section below to view the Retention Head Selection Chart.

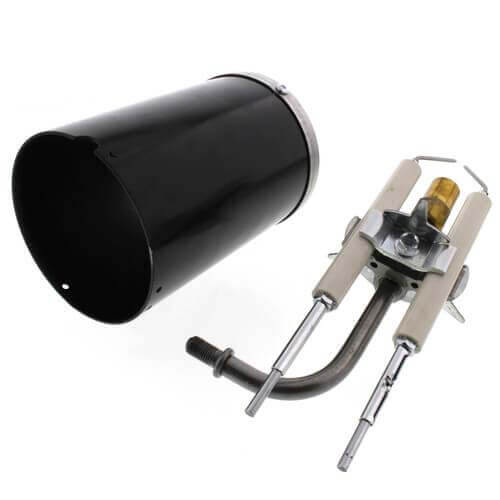

Air Tube – 4” diameter steel pre-drilled for attachment to burner chassis and retention head.

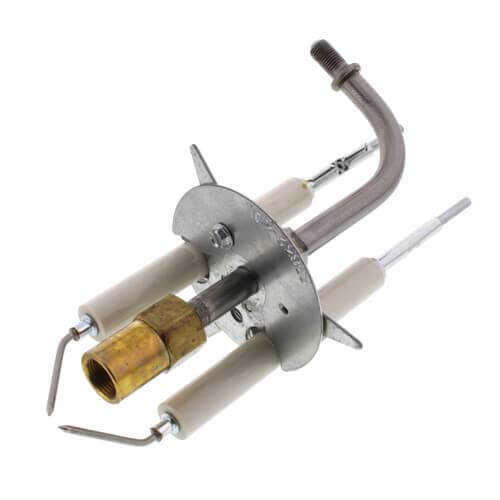

Nozzle Line Electrode Assembly – Self-centering, delivers oil to the nozzle, high voltage electricity to the electrodes; static plate controls and evens out air flow to the head for smooth, efficient combustion.
Flame Retention Head – One-piece flame retention burner head. Highly stable and intense combustion increases efficiency by as much as 35%.
This product is compatible with the AFG Flame Retention Residential Oil Burner (B2007) and AF Flame Retention Residential Oil Burner (B3001).
- Fits Beckett AFG and AF burner chassis
- Useable Length: 6-5/8”
- Overall Length: 7-1/8”
- Static Disk: 2-3/4”
- Retention Head: F12
- Firing range: 1.10-2.00 GPH
