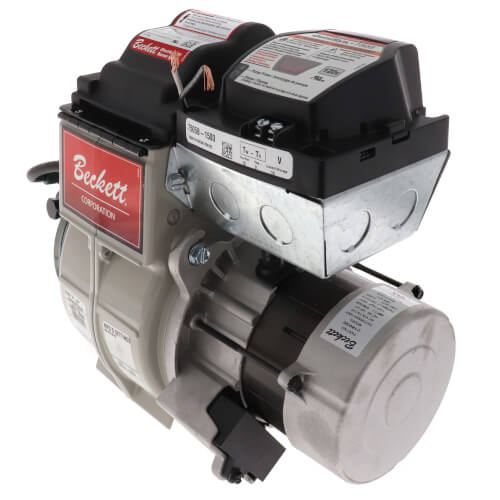

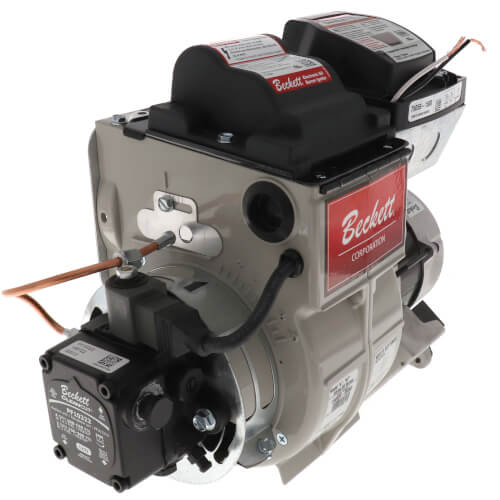

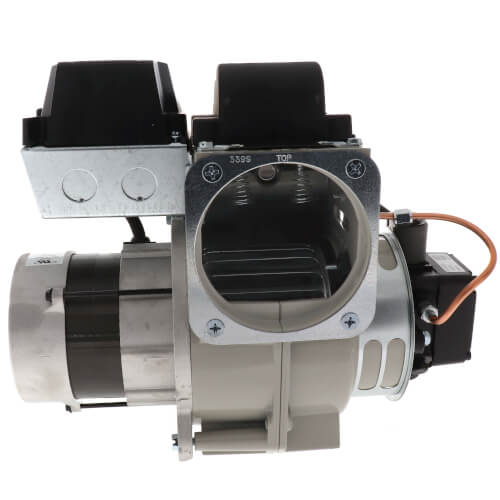

AF Flame Retention Residential Oil Burner

Note: LICENSED CONTRACTOR REQUIRED
This product must be installed by a qualified and licensed contractor using properly calibrated combustion test equipment. Failure to adhere to this requirement may result in significant property damage, serious personal injury, or death.

• Includes Honeywell R7184B1032
• Motor: 3450 rpm, NEMA M-flange, manual reset overload protection
• Power Supply: 120V/60Hz./1 phase
• Ignition: 10,000V/ 23 ma. secondary, continuous duty shielded transformer
• Operation Load: 5.8 amps (maximum)
• Nozzle Line Electrode Assembly - Self-centering, delivers oil to the nozzle, high voltage electricity to the electrodes; static plate controls and evens out air flow to the head for smooth, efficient combustion.
• Flame Retention Head - One-piece flame retention burner head. Highly stable and intense combustion increases efficiency by as much as 35 percent.
• Drive Motor - Continuous duty, split phase motor, built for daily hard use and years of trouble-free operation. Overload protection included.
• Ignition Transformer - 10000V/ 23ma. secondary positively and smoothly ignites fuel.
• Electrically balanced and shielded. No TV interference. Designed for heavy duty continuous operation.
• Connector Tube Fitting - Special Beckett, high quality flare fitting.
• Burner Housing - Sturdy die cast, precisely machined aluminum housing aligns pump and motor for smoothest operation and longest coupling life.
• Static Pressure Capability: Conventional - Low Range
• Blower Wheel: Design Standard Strip
• Inlet Airflow: Design Standard Inlet Bell
• UL Air Tube Combinations: "F" Series ONLY
• Igniter Gaskets Baseplate/Barrier: Optional, as specified
• Low Firing Rate Baffle: Not Required
