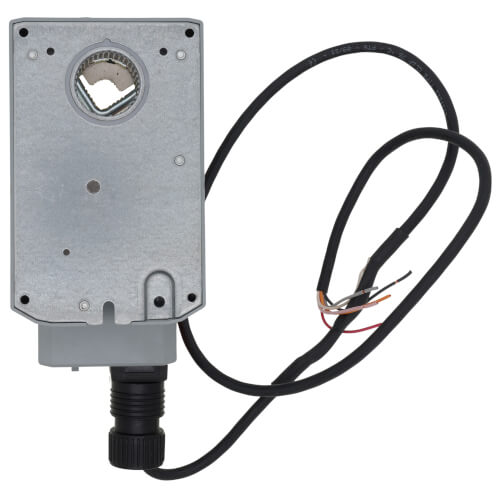

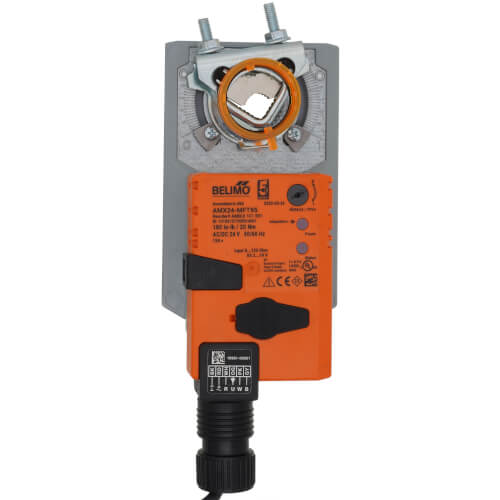

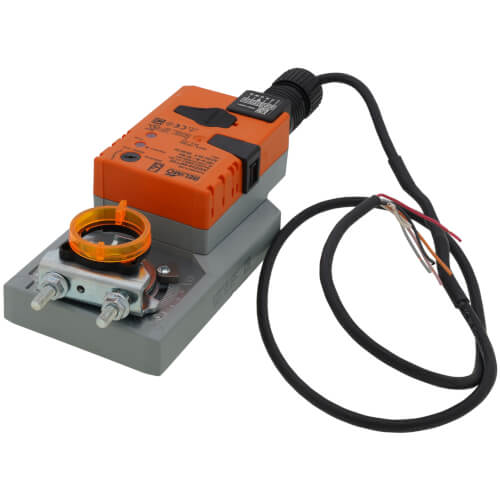

Non-Spring Return Proportional Damper Control Actuator, Direct Coupled, MFT - 24 VAC/DC (Customizable Product)

Features:

• Brushless DC Motor for Added Accuracy and Controllability
• Cut Labor Costs with Simple Direct Coupling
• Self-Centers on 1/2",3/4", and 1.05" Jackshafts with Standard Clamp
• Check Damper Position with Clear Position Indicator
• Don't Worry about Actuator Burn-Out; Belimo is Overload Proof throughout Rotation
• Enjoy Added Flexibility with Easy Mechanical Stops to Adjust Angle of Rotation
• Need to Change Control Direction? Do it easily with a Simple Switch
• Easily Accessible Manual Override Button helps you Pre-Tension Damper Blades
• Fully Adjustable Built-In Auxiliary Switch (AMB24-3-S)
• Auxiliary Switch and Feedback Potentiometer Add-Ons Mount Directly on Clamp, Includes Conduit Connector
• Standard 3ft Plenum Rated Cable and Conduit Connector Provided on Basic Models
• Added Flexibility to Select Clamp, Electrical Connection, and Running Time to fit your Specific Application with Belimo's New Flexible Line of Actuators

The AMX24-MFT95 is used for proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer's specifications.

The actuator is not provided with and does not require any limit switches, but is electronically protected against overload. The anti-rotation strap supplied with the actuator will prevent lateral movement.

The AMX series provides 95° of rotation and a visual indicator indicates position of the actuator. When reaching the damper or actuator end position, the actuator automatically stops. The gears can be manually disengaged with a button on the actuator cover.
