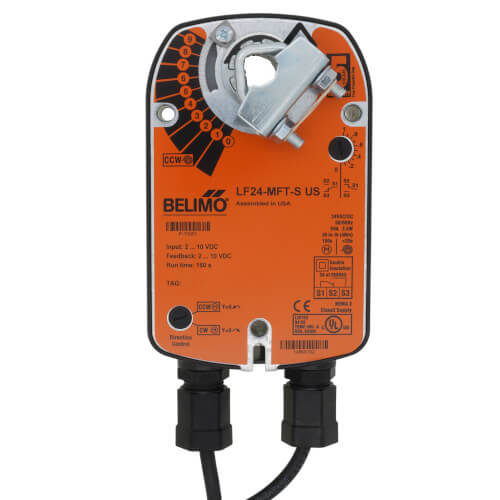

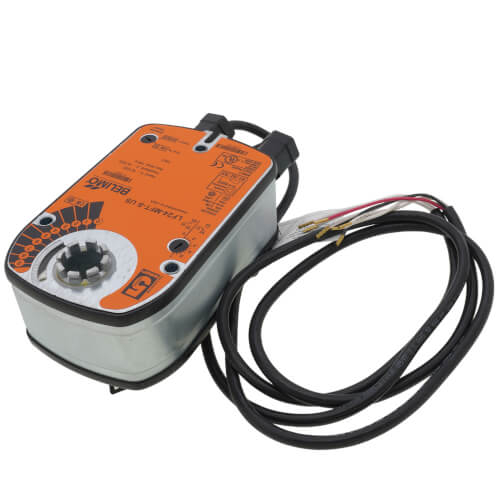

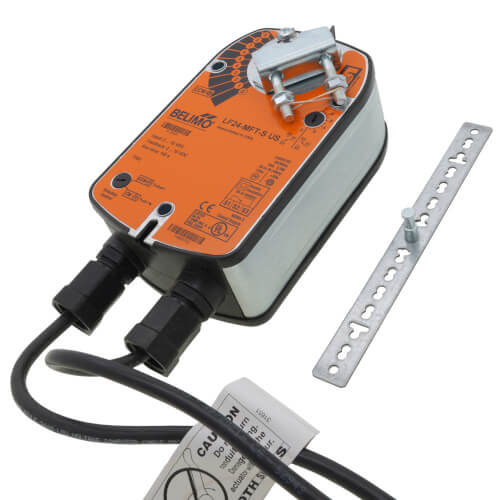

Spring Return Fail-Safe, Proportional Damper Control Actuator, Direct Coupled, MFT - 24 VAC/DC
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$387.90 each
In Stock
Order by today, receive Tuesday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
35 lb-in Torque
5 Year Warranty
Description
–
Features:
Note: Running Time (motor), Direction of Rotation are figures are variable when configured with MFT options.
- Cut labor costs with (10 min. installation) simple direct coupling. Actuator Centers on 1/2" shaft (K6-1, 3/4" clamp optional).
- True mechanical spring return - the most reliable failsafe.
- Mount for clockwise or counterclockwise fail-safe.
- Easy-to-adjust mechanical stop to limit damper rotation.
- Check damper position easily with clear position indicator.
- Don't worry about actuator burn-out. Belimo is overload-proof throughout rotation.
- Need to change control direction? Do it easily with a simple switch (modulating actuators).
- Built-in auxiliary switch is easy to use, offers feedback or signal for additional device.
- Microprocessor-controlled brushless DC motor increases actuator life span and reliability, provides constant running time (modulating actuators). Provided on Basic Models
- Rugged metal housing withstands rough handling in the mechanical room.
- 3 ft. cable and conduit connector eases installation.
Note: Running Time (motor), Direction of Rotation are figures are variable when configured with MFT options.
Specs
–
| Fail Safe Mode: | Spring Return |
|---|---|
| Actuator Type: | Proportional |
| Power Supply: | 24 VAC/DC |
| Torque: | 35 lb-in |
| Features: | Multi-Function Technology |
| Running Time: | 150 Seconds (motor) < 25 Seconds @ 4°F to 122°F (spring) < 60 Seconds @ -22°F (spring) |
| Power Consumption: | 2.5W (running) 1W (holding) |
| VA Rating: | 5 |
| Ambient Temperature: | -22°F to +122°F |
| Control Input Values: | 2 to 10 VDC, 4 to 20 mA (default) |
| Auxiliary Switch: | 1 SPDT |
| Manual Override: | None |
| Direction of Rotation: | Reversible w/ cw/ccw mounting (spring) Reversible w/ built-in switch (motor) |
| Warranty: | 5 Year |
