Description
Note: The 1" jaw size is obtained by taking out the jaw and using it without any attachment.

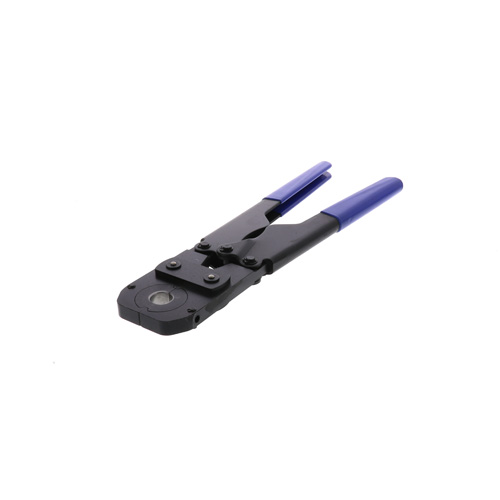

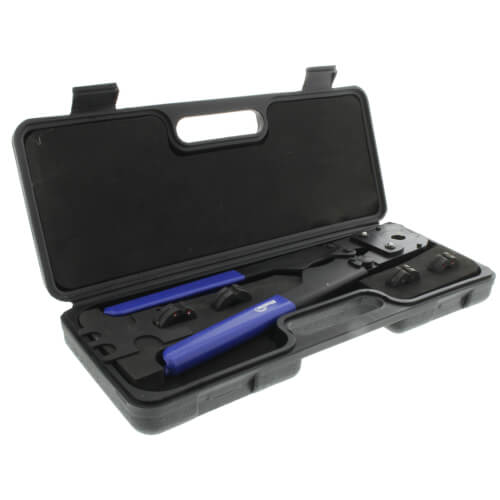

The kit, with a tough plastic case, includes a 15" Master Crimper that crimps 3/8", 1/2", 5/8", 3/4", and 1" copper crimp rings, interchangeable 3/8", 1/2", 5/8", 3/4", and 1" crimping jaws, and a Go/No-Go crimp gauge. Crimp tool conforms to ASTM F1807 specifications for PEX connections in potable water and radiant heating systems.

Key Features:
  • Quick change: Instant jaw installation and releasing
  • Easy calibrations: Tool calibrations are made easy with adjustable lock screws

User Guide Notes:

Completed crimps must meet the dimensional requirements of ASTM F1807, F2159, F845 or F1380 fitting standards.

The Crimp/Clamp Tools are user adjustable. When the tool makes unsatisfactory crimps it must be adjusted (use adjust pin).

The Crimp/Clamp Tools must be checked for correct adjustment at the start of every day. Each clamp ring shall be gauged to ensure that it has been crimped properly and for the accuracy of the tool.

Hide Description
Manuals (1)
Specs
Type:

Tool

Tubing Compatibility:

PEX

Length (Inches):

15"

Fitting System Compatibility:

Crimp

Includes:

Go/No-Go Crimp Gauge

Application:

3/8" PEX

1/2" PEX

5/8" PEX

3/4" PEX

1" PEX

×
