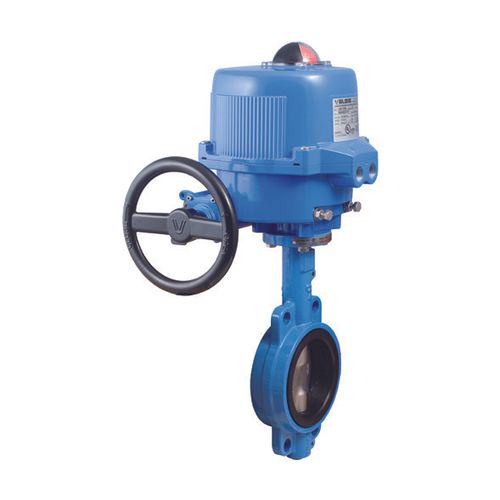

2-1/2" Wafer Butterfly Valve w/ VB030M-002 24V AC/DC Metal Electric Actuator

2-1/2" Rubber-Lined Direct Mount, Wafer Style Buttefly Valve with EPDM Seats and SS Disc with Valbia Metal Electric Actuator, 24V AC/DC

Bonomi North America series MEN500S packages include cast iron, epoxy coated, wafer style, resilient EPDM seat butterfly valves are NSF/ANSI61/372 certified. This series offers a dual stem design and ISO 5211/DIN3337 direct mounting for high cycle automation capabilities. In addition, the MEN500S series features a phenolic -backed cartridge seat design which offers a 250CWP maximum pressure rating, dead-end service to 100 PSI, and conforms to ANSI B16.1 and ANSI B16.5 The MEN500S series also includes a rugged aluminum polyester powder coated metal housing NEMA 4 electric actuator, with standard features such as 2 extra limit switches, heater and thermostat, torque limiter, dual voltages, bubble type position indicator and a 75% duty cycle motor.

Actuator Features:

• Dual Voltages
• CSA, UL approved
• 24V AC/DC
• ISO 5211 dual patterns
• 75% Duty Cycle
• High-Strength, Die Cast Aluminum
• Powder Coated Housing
• Temperature Range -4°F to 131°F
• NEMA 4 Housing
• Two Auxiliary Switches Standard
• Torque limiter standard
• 1/2" Conduit connections

Valve Features:

• Size: 2-1/2"
• ISO 5211 Direct Mount/Square Stem
• Epoxy coated Ductile Iron Wafer body
• Stainless steel disc
• EPDM resilient seat (-30°F TO 250°F)
• 530S - VITON seats (10°F TO 300°F)
• 540S - BUNA seats (10°F TO 250°F)
• API609 face to face flange
• Floating dual shaft disc design
• MSS SP 67 compliant
• No pins in disc prevent potential leak points
• NSF/ANSI 61, 372 approved
