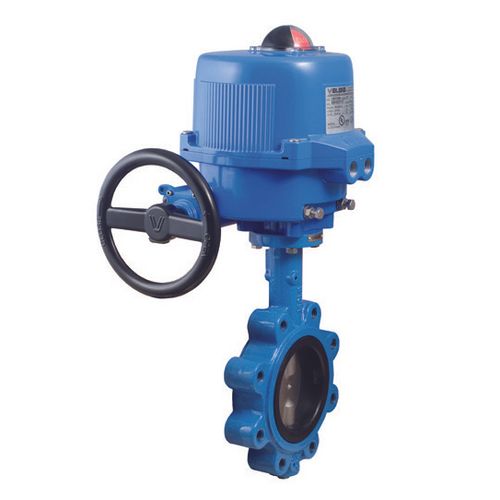

4" Lug Butterfly Valve w/ VB060M-002 24V AC/DC Metal Electric Actuator

4" Rubber-Lined Direct Mount, Lug Style Butterfly Valve with EPDM Seats & SS Disc w/ Valbia Metal Actuator, 24V AC/DC

This series offers a dual stem design and ISO 5211/DIN3337 direct mounting for high cycle automation capabilities. In addition, the MEN501S series features a phenolic -backed cartridge seat design which offers a 250CWP maximum pressure rating, dead-end service to 100 PSI, and conforms to ANSI B16.1 and ANSI B16.5 The heavy duty industrial EXM series electric actuator features a direct mount CSA certified NEMA 4X,7,8, and 9 housing, with 2 auxiliary switches, 1/2" conduit connections, built in thermal overload protection, heater & thermostat, clutch-less manual override, and a temperature range of -22°F to 156°F.

Actuator Features:

• Dual Voltages
• CSA, UL approved
• 24V AC/DC
• ISO 5211 dual patterns
• 75% Duty Cycle
• High-Strength, Die Cast Aluminum Powder Coated Housing
• Temperature Range -4°F to 131°F
• IP68/Type 4X Housing
• Two Auxiliary Switches Standard
• Torque limiter standard
• 1/2" Conduit connections

Valve Features:

• Size: 4"
• ISO 5211 Direct Mount/Square Stem
• Epoxy coated Ductile Iron Lug body
• EPDM resilient seat (-30°F TO 250°F)
• 531S - VITON seats (10°F TO 300°F)
• 541S - BUNA seats (10°F TO 250°F)
• API609 face to face flange
• Floating dual shaft disc design
• MSS SP 67 compliant
• No pins in disc prevent potential leakpoints
• NSF/ANSI 61, 372 approved
