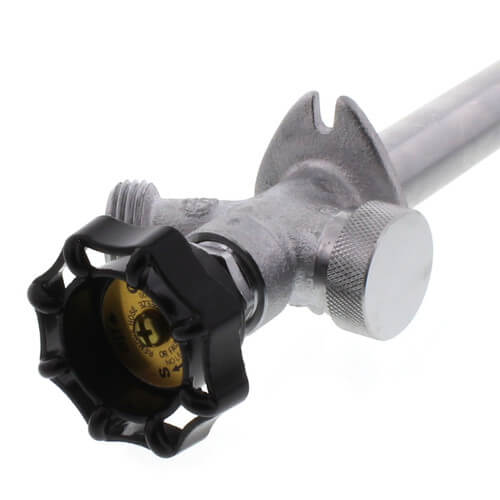

10", 1/2" PEX x 3/4" MHT PEX Frost Free Sillcock (Anti-Siphon) (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
Description
Specs
| Size: | 1/2" |
|---|---|
| Application: | Plumbing |
| Lead Free: | Yes |
| Length (Inches): | 10" |
| Inlet Type: | PEX Crimp |
| Material: | Chrome Plated |
| Thread Type: | Male |
| Standards Met: | ASTM F1807 |
| Fitting System Compatibility: | Clamp Crimp |
| Tubing Compatibility: | PEX |
| Max Temp (F): | 200°F |
| Max Pressure (PSI): | 200 |
| Type: | Anti-Siphon |
Contact
Happy Independence Day!
Compare Similar Products
You May Also Need
Product Reviews
Most Liked Positive Review
Good price, easy-ish install
Most Liked Negative Review
Toss a coin for Leaks
I recommend this product to anyone needing a frost proof one
Toss a coin for Leaks
Great products and prices
Not sure yet
i would buy this product again
I would not buy this again
Decent Product
yes
Good price, easy-ish install
works like a champ
Product Q&A
9 QuestionsQ: what is the best way anybody has found to mount these solid in the wall so they dont turn when someone turns on the handle.
Asked by daveplumber 13 years ago
Add your answer
Hose Bibb Mounting Plate 7610 Atlanta Special Products Hose Repair and Parts
I used stainless deck screws in the slots, seems to hold it firmly in place Sent from my iPad
I use construction adhesive and spray foam to keep them sealed and keep them from turning. There's also the indents on the side where you could screw them in, but I find that's harder to do on brick. Brian
Look on each side of the handle, you will see 2 area to put screw in. Job done.
I have installed several of these with no issues at all by just using the two screw holes provide on either side of the flange which presses against the wall. Sent from my iPhone
Q: Can a PEX A expander fitting ring be used to connect?
Asked by Jim 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis sillcock uses a crimp connection to adapt to 1/2" PEX. For ProPEX expansion connections, we recommend parts 209010 and Q4360500.
Q: Can I use ProPEX pipe/connections on PEX fitting products like this? I'm not clear if the 1/2 PEX and ProPEX fittings can mix and match. If not, is there an equivalent Sillcock that I could use or some kind of adapter?
Asked by Fred 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis sillcock has a 1/2" PEX crimp connection. It cannot function as a ProPEX expansion fitting.
I would not use a combination of the two systems. If you look carefully, propex has a different configuration of barbs vs. a standard pex fitting. You could order a standard silcock (1/2" threads and Sweat) with a threaded on propex fitting to make the connection. I am always cautious when mixing proprietary technology due to UL listings and such.
This PEX sillcock may be used with the stainless steel clamping system or the copper crimp ring system. This particular sillcock can't be used with the Pro Pex fittings.
These sort of products with PEX fittings generally use the standard copper-ring crimp fitting. The Uponor tubing can still be used with ProPex fittings, but you'll need a copper crimp ring for the attachment to this and other typical products with PEX fittings. (Uponor PEX tubing is compatible with both.)
Q: Do the Anti-Siphon, Frost Free, sillcocks have replaceable washers or seals inside?
Asked by AJ7V 14 years ago
Add your answer
Yes, they are replaceable and usually take standard faucet washers.
No. And one of mine broke already. I will have to get a new one all together.
Yes they do. You can service them just like any frost free sillcock. The only difference is it has a pex connector on the end as opposed to a copper connector.
I havent had to replace one as of yet. But they do work perfectly Sent from my Verizon Wireless Droid
Q: What is the diameter of the main tube that's going through the wall.
Asked by Newbie 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe diameter is 7/8" for 10" model.
Q: Do I need any additional fittings to hook up to 1/2" viega tubing?
Asked by wdwrkr132 15 years ago
Add your answer
Verified Reply- PexSupply StaffAll you will need is a 1/2" crimp ring or 1/2" clamp ring.
Nope, it comes with the PEX 1/2" end you just crimp the tubing to.
Q: what is ment by a anti-syphon sillcock
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffAnti-syphon sillcocks are designed to prevent two situations from occurring: the freezing of pipes in cold weather and the siphoning of contaminated water back into the drinking water supply.
Q: what is size of mounting flangr? Distance between mounting holes?
Asked by mac 16 years ago
Add your answer
Verified Reply- PexSupply StaffThe flange is about 2 1/2" long and 1 1/2" wide at the longest points. The distance between the mounting holes is between 2 1/4"- 2 1/2."
Q: 1. What is the diameter of the pipe where the PEX connection is made? So I know hole diameter for drilling. 2. Wall is 8 inches thick, is the sillcock one inch or so longer than 8 inches, when measured from collar back to the PEX connection? Thanks.
Asked by john 16 years ago
Add your answer
Verified Reply- PexSupply StaffDepending on the size of tubing you are working with, it will vary. For example, 1/2" tubing will have 0.475" inside diameter and 0.625" outside diameter. This information can also be found in the comparison guide, on the page where our PEX tubing is located. The sillcock is 8 1/4" from collar back to the PEX connection.
