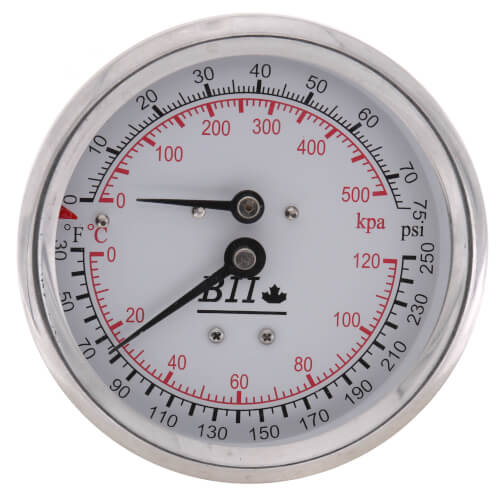

1/2" NPT, 3" Face, Temperature & Pressure Gauge (Tridicator)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$25.92 each
In Stock
Get 6 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
250°F Max Temp
30°F Min Temp
120°C Max Temp
0°C Min Temp
75 MAX PSI
0 PSI
Description
–
Features
- 3" Dial general purpose industrial combination pressure gauge/thermometer
- Black steel case with acrylic window
- 1/2" MPT brass center back mount connection
- Bourdon tube and coiled bi-metal element
- Dual scale degree F and degree C
- Range: 30 - 250F - 5 degree increments
- Range: 0 - 120C - 2 degree increments
- Dual scale PSI & kPa increments
- Range: 0 - 75 psi - 1 psi increments
- Range: 0 - 500 kPa - 10 kPa increments
- 2-1/4" Well
Specs
–
| Measures: | Fahrenheit Pressure Celsius |
|---|---|
| Dial Size: | 3" |
| Max Temp (F): | 250°F |
| Min Temp (F): | 30°F |
| Max Temp (C): | 120°C |
| Min Temp (C): | 0°C |
| Max Pressure (PSI): | 75 |
| Min Pressure (PSI): | 0 |
| Type: | Dry |
| PSI Range: | 0-75 |
| Connection Type: | 1/2" NPT |
| Mount: | Back |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
Customer Images
Showing 1-6 of 6 reviews
Leaked into gauge area, useless
I bought two for a combi boiler I installed. One is still working but the other leaked into the gauge area, filling with fluid. It worked for a while but now neither the pressure or temperature register at all and the fluid is dripping out of the housing so I need to replace.
DeeK
Pojoaque, NM
4 years ago
Was this review helpful to you?
Two out of three leaked
I installed three of these on my outdoor wood boiler. One leaked upon installation and another one started leaking internally after two months of operation.
Mark
Georgetown, PA
4 years ago
Was this review helpful to you?
Had three of these out of 12 purchased leak internally
Supply house it the best when it comes to returns. No questions asked sent out replacements. These gauges have some issues I am worried that the other ones we installed may leak as well. I will not be purchasing this brand in the future.
CAW
Central Florida
5 years ago
Was this review helpful to you?
trash
the peg on the pressure side was bent. before installation the gauge reads 5 PSI. Temp is off by as much as 10 degrees F based on my fluke clamp on pipe thermometer. Basically complete trash.
joe
Minneapolis
5 years ago
Verified Buyer
Was this review helpful to you?
junk
Right out of the box, the peg for the pressure side is bent. The gauge is pegged at 5 PSI. Just laughably bad, garbage.
Joe
Minneapolis
5 years ago
Was this review helpful to you?

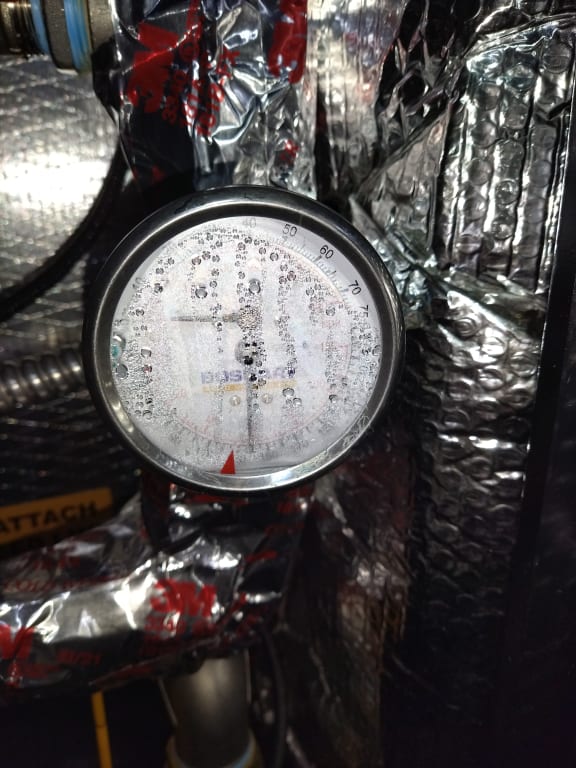

humidty is. an issue
Works great, but in the Pacific Northwest humidity results in fog inside the gage. I hope it dries out.
I am sure it was installed OK, but maybe there is some trick to prevent the fog!
none
Seattle WA
12 years ago
Verified Buyer
Was this review helpful to you?
