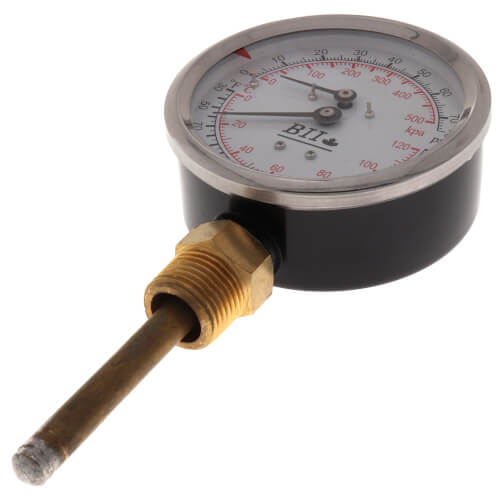

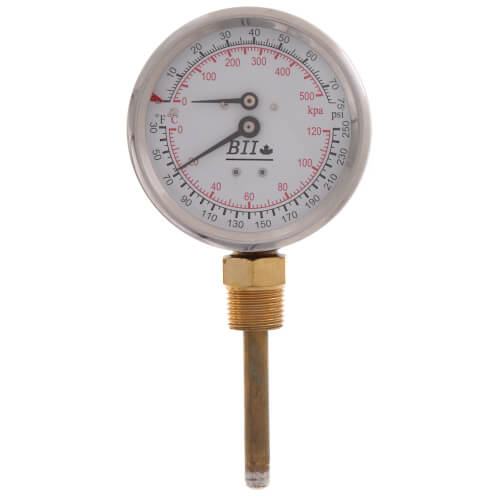

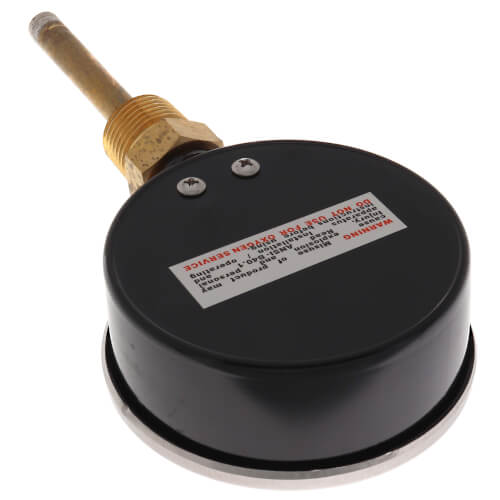

1/2" NPT, 3" Face, Temperature & Pressure Gauge (Tridicator)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$29.88 each
In Stock
Get 50 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
250°F Max Temp
30°F Min Temp
120°C Max Temp
0°C Min Temp
75 MAX PSI
0 PSI
Description
–
Features
- 3" Dial general purpose industrial combination pressure gauge/thermometer
- Black steel case with acrylic window
- 1/2" MPT brass bottom mount connection
- Bourdon tube and bi-metal element
- Dual scale degree F and degree C
- Range: 30 - 250F - 5 degree increments
- Range: 0 - 120C - 2 degree increments
- Dual scale PSI & kPa increments
- Range: 0 - 75 psi - 1 psi increments
- Range: 0 - 500 kPa - 10 kPa increments
- 2-1/4" Well
Specs
–
| Measures: | Celsius Pressure Fahrenheit |
|---|---|
| Dial Size: | 3" |
| Max Temp (F): | 250°F |
| Min Temp (F): | 30°F |
| Max Temp (C): | 120°C |
| Min Temp (C): | 0°C |
| Max Pressure (PSI): | 75 |
| Min Pressure (PSI): | 0 |
| Type: | Dry |
| PSI Range: | 0-75 |
| Connection Type: | 1/2" NPT |
| Mount: | Bottom |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
2.33 out of 3 reviews
33% would recommend this product
5 star
33%
4 star
0%
3 star
0%
2 star
0%
1 star
67%
Showing 1-3 of 3 reviews
2 Failed On Me
This Product Was Used In A Hot Water Recirculation Loop. Water Pressure 55 Psi . The first gage failed internally, letting water escape the face plate. Supplyhouse replaced the first one with A New replacement, But The New Part Experienced The Same Failure Within Two Weeks.
Ace design
Abq, NM
2 years ago
Was this review helpful to you?
Never Again! Three Unforgivable Problems
This Boshart 1/2" Bottom Mount Temperature Pressure Gauge is a complete disappointment. +To read the temperature, one must tap firmly & repeatedly on the gauge so the indicator will jump into position. Otherwise, it stays in one place forever. Bench testing showed that the needle will jump to the correct temperature +/- 4 degrees-C. :/The pressure indicator is relatively accurate, staying within +/- 20 kPa. -\The reference indicator (user-settable red arrow on dial) is not useful because the arrow is at an angle, so it can't line up with your reference pressure. (And it spins with the cover plastic when one must tap on the gauge to get the temperature indicator to move.) +PS: Did you notice the Canadian maple leaf on the photo? Well, this thing is made in China. (Apparently on a very bad day at the factory.)
PJB
Detroit, MI
2 years ago
Was this review helpful to you?
yes
to control a wood boiler
racer
knoxville pa. 16928
2 years ago
Verified Buyer
Was this review helpful to you?
