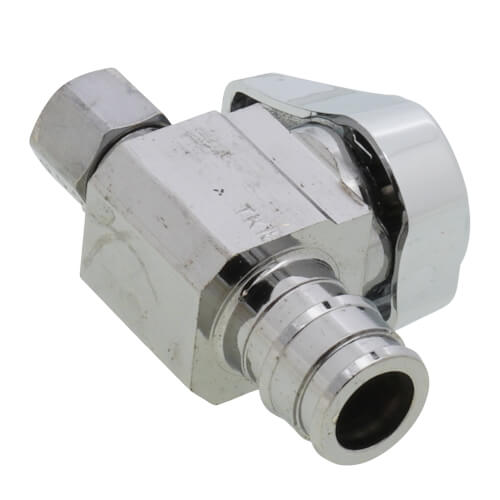

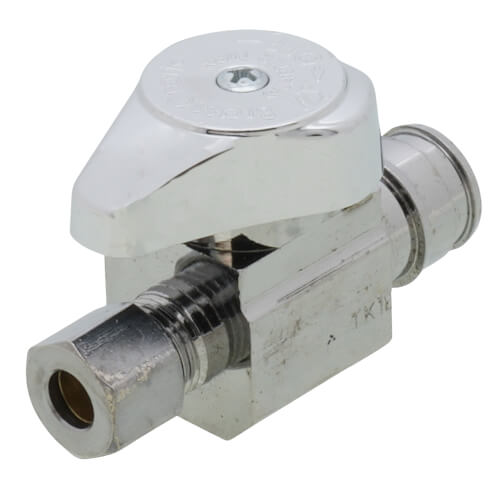

1/2" Cold Expansion PEX x 1/4" OD Compression, 1/4" Turn Straight Valve

BrassCraft 1/2 in. nominal cold expansion PEX barb inlet x 1/4 in. O.D. compression outlet 1/4-turn straight valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The straight valve is most often used where the water pipe enters the room from the floor. With a 90° turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home. BrassCraft's G2 series design features a 1-piece shut-off mechanism that provide years of smooth, 1/4 turn operation without freeze-ups even after long periods of non-use. Chrome plated for corrosion resistance and refined appearance.

Product Features

• Contractor pack includes 5 individually tray valves
• Compatible with cold expansion PEX only
• Requires cold expansion ring and expander tool for proper installation; not included
• Smooth, on/off flow control with a 90° turn of the handle
• 1-piece shut-off mechanism ensures smooth operation without freeze-ups even after long periods without use
• Machined, 1-piece brass body ensures strength, durability and long-lasting performance
• Easy-to-remove handle protects against accidental operation during rough-ins
• 100% leak tested
• Chrome-plated brass
• Temperature rating: 40° to 140° F
• Pressure rating: 125 psi maximum
• No-lead certified
