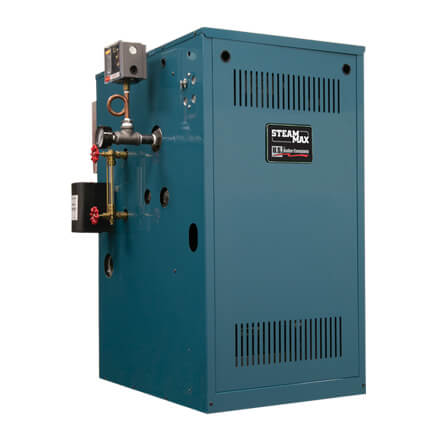

SteamMax, 62,000 BTU Output, 258 Sq. Ft. Steam Boiler (Natural Gas)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
MANUALS (5)
Lift Gate
–
This product weighs 484 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
82000 Max BTUs
Natural Gas
10 Year Limited Warranty
Steam
100000 BTUs
47" Height
Description
–
Heating equipment must be installed, commissioned, and serviced by a licensed and qualified professional in accordance with manufacturer instructions, applicable codes, and industry standards. Manufacturers do not accept warranty or technical support requests from homeowners or unlicensed individuals. All warranty and technical inquiries must be initiated by the licensed professional responsible for the installation.
Rebates:
You may be eligible for rebates from your local utility company and state. Search your zip code in the link below for information about rebate programs that apply to you. Burnham Rebate Center
Packaged Boiler, 100 MBH STEAM, Natural Gas, Comes with CG400 Low Water Cutoff.
Features:
Specifications:
Rebates:
You may be eligible for rebates from your local utility company and state. Search your zip code in the link below for information about rebate programs that apply to you. Burnham Rebate Center
Packaged Boiler, 100 MBH STEAM, Natural Gas, Comes with CG400 Low Water Cutoff.
Features:
- The NEW SteamMax gas-fired steam boiler is the industry’s new benchmark for longevity, efficiency, and flexibility. It’s the ALL-NEW gas steam boiler that you’ve been waiting for!
- Robust, corrosion-resistant cast iron sectional design extends heat exchanger life in a wide variety of water conditions
- Larger “steam chest” with increased steam disengaging area above a stable water line; wider internal waterways
- No heat transfer pins above water line, no crown sheet fins; greater corrosion resistance in critical areas
- More heat transfer pins below water line, provide ample heat transfer and efficiency
- Leak-free metal push nipples, not gaskets
- Steam risers in intermediate sections promote smooth steam flow. 2” supply tappings, 2” skimming port tapping
- Rear, low-profile draft diverter clears low overhead and eases installation
- Tappings on both ends for greater piping flexibility and additional controls
Specifications:
- Input MBH: 100
- Output MNH: 82
- Net AHRI Rating Steam (sq.ft.): 258
- Net AHRI Rating Steam (MBH): 62
- AFUE (%): 82
- Number of Sections: 3
- Vent Size (Inch): 5
- Supply (NPT): 2
- Return (NPT): 2
- Gas Connection (NPT): 1/2
- SteamMax boiler control suite
- Industrial-grade pressuretrol
- Probe-type low water cut-off
- Optimized stainless steel burners
- Step-opening gas valve
- 2” risers
- Rear-mounted low profile draft diverter
- Junction box
- Thermostat isolating relay
- 15 PSI relief valve
- Gauge glass
- Unmatched corrosion warranty
Specs
–
| Product Type: | Boiler |
|---|---|
| Fuel Type: | Natural Gas |
| Efficiency: | 82% |
| BTU Output: | 82000 |
| BTU Input: | 100000 |
| Vent Size: | 5" |
| Height (Inches): | 47" |
| Features: | Chimney Vent |
| Warranty: | 10 Year Limited |
| System Type: | Steam |
| Boiler Type: | Packaged |
