Description

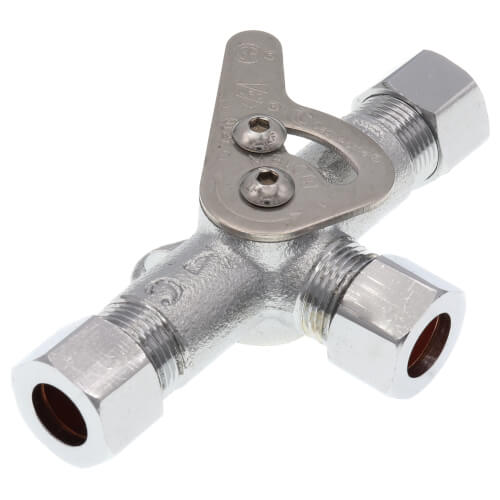

Cash Acme's Mechanical Mixer is designed for use under the sink. The valve mixes hot and cold water and delivers tempered water at a safe temperature.

NOTE: This is hot and cold mechanical mixing valve only. The Cash Acme mechanical mixing valve is NOT a temperature limiting device and does not provide automatic control of the water temperature.

Features:
  • 3/8" compression connections
  • Adjustment lever with lock screw
  • Brass valve with chrome-plated finish
  • The Mechanical Mixer allows for the mixing of hot and cold water to a point of use fixture
  • Designed to install under the lavatory
  • Quick and Easy Service/Repair
  • Brass Construction with a grit blasted, chrome plated finish
  • Stainless steel adjustment lever
  • Locking Mechanism prevents unwanted adjustments

Specifications:
  • Mechanical mixing valve that delivers water to a set hot and cold mix ratio, outlet temperature adjustable by manual lever
  • Maximum Supply Pressure: 125 psi
  • Maximum Supply Temperature: 180°F (93°C)
  • Service: Potable Water
  • Body: Lead Free Brass
  • Adjustment Lever: Stainless Steel
  • Size and Connection: 3/8” Compression
Hide Description
Manuals (2)
Specs
Size:

3/8"

Material:

Bronze (Body)

Connection Method:

Compression

Max Pressure (PSI):

125

Max Temp (F):

180°F

Lead Free:

Yes

×
