$237.87 each
In Stock
Get 4 Tue, Jul 7
Order by today, receive Tuesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1050 RPM
CCWLE
1/4-1/5-1/6-1/8, 1/5 HP
Resilient Rings
3.2 Amps
Description
–

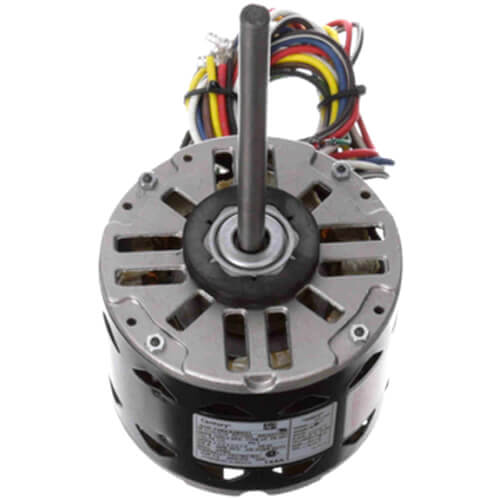

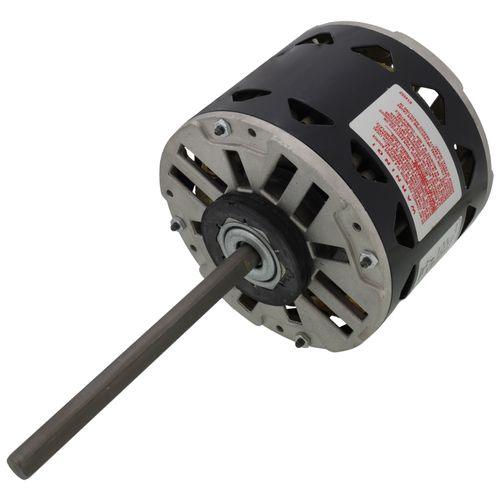

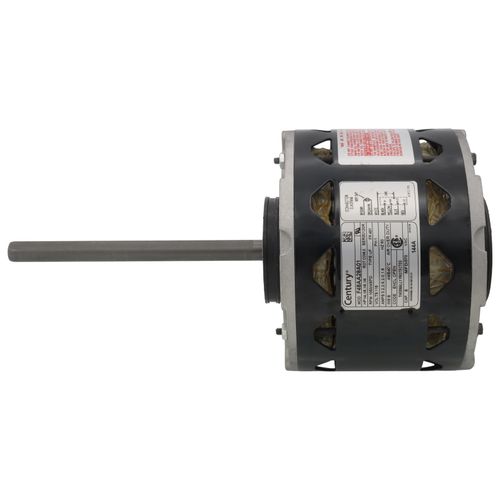

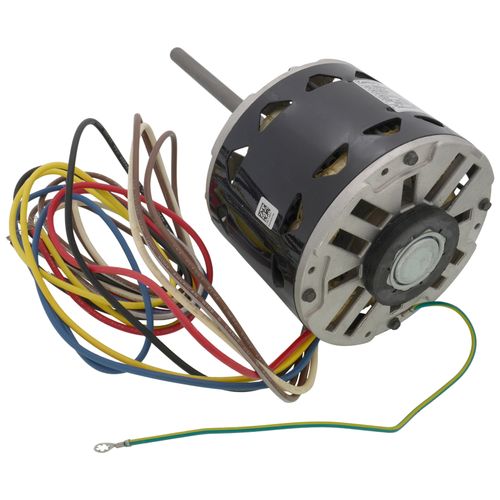

5-5/8" Diameter Stock Motor (115V, 1050 RPM, 1/4 to 1/8 HP)
Features:
Features:
- 1/4, 1/5, 1/6, 1/8 HP
- Phase: 1
- Speeds: 4
- Overload: Automatic
- Mounting: Resilient Rings
- Frame: 48
- Rotation: CWSE
- RPM - 1050
- Amps: 7.60-5.80-4.70-3.70
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Bearings: | Sleeve |
| Horse Power: | 1/4-1/5-1/6-1/8 1/5 |
| Duty: | Air Over |
| RPM: | 1050 |
| Poles: | 6 |
| Mount: | Resilient Rings |
| Phase: | 1 |
| Enclosure Type: | Open |
| Rotation: | CCWLE |
| Speeds: | 4 |
| Hertz: | 60 |
| Frame: | 48Y |
| Amperage: | 3.2 |
| Insulation Class: | B |
| Overload Protection: | Automatic |
| Capacitor: | 5MFD-370V |
| Max Ambient Temp (°F): | 104°F |
| Motor Orientation: | Horizontal |
