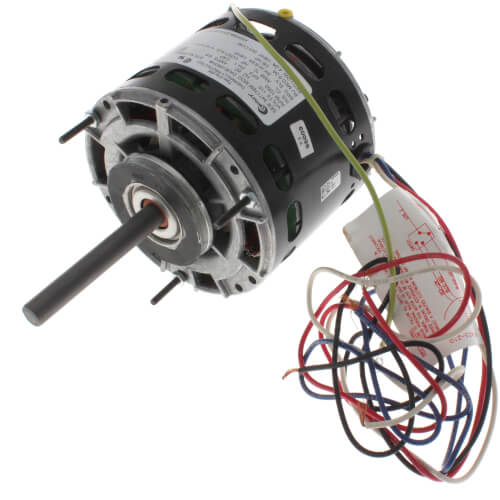

Main product image of 5" 3-Speed Single Shaft Open Fan/Blower Motor (115V, 1050 RPM, 1/5, 1/6, 1/8 HP)

Hover image to zoom

5" 3-Speed Single Shaft Open Fan/Blower Motor (115V, 1050 RPM, 1/5, 1/6, 1/8 HP)

Name: 5" 3-Speed Single Shaft Open Fan/Blower Motor (115V, 1050 RPM, 1/5, 1/6, 1/8 HP)
Brand: Century
SKU: 385
Price: 253.19 USD
Availability: OutOfStock

Brand:

Century

SKU:

385

Rating:

(0)

Q&A:

(0)

5" 3-Speed Single Shaft Open Fan/Blower Motor (115V, 1050 RPM, 1/5, 1/6, 1/8 HP)

Hover image to zoom

385 has been discontinued

Discontinued March 2, 2023

This product was discontinued by the manufacturer.

MANUALS (2)

Brochure

Product Highlights

–

115V

1050 RPM

CCWLE

1/5, 1/8, 1/6 HP

Resilient Rings

6.8 Amps

Description

–

Features:

115 Volt
1050 RPM
6.8 Amps
1/5, 1/6, 1/8 HP
60 Hz
3 Speed
Single Phase
Open Air Over (OAO) Enclosure
42 NEMA Frame
CCWLE Rotation
Shaded Pole
Sleeve Bearing
Open Construction
Insulation Class: A
SF: 1.0
Motor Type: FE
Motor Diameter: 5"
Motor Length: 3-3/4"
Shaft: 1/2" x 3-3/8"

Specs

–

Type:	Shaded Pole
Horse Power:	1/5 1/8 1/6
Bearings:	Sleeve
Duty:	Continuous Air Over
RPM:	1050
Mount:	Resilient Rings
Voltage:	115V
Poles:	6
Rotation:	CCWLE
Enclosure Type:	Open Air Over
Speeds:	3
Frame:	42
Amperage:	6.8
Insulation Class:	A
Phase:	1
Overload Protection:	Automatic
Max Ambient Temp (°F):	104°F
Motor Orientation:	Horizontal
