612A has been discontinued
Discontinued October 11, 2024
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
115V, 208V, 115/208-230v, 230V
1550 RPM
CWLE
1/15 HP
Resilient Rings
2.8 Amps
Description
–

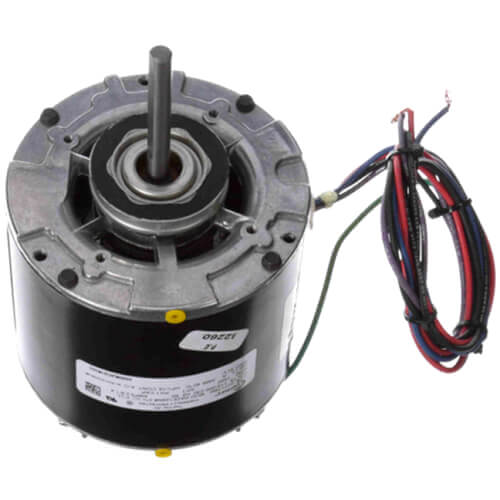

GE 21/29 5" Frame Replacement Motor (115/230V, 1550 RPM, 1/15 HP)
Features:
Features:
- Length less shaft - 4-9/16"
- Mount - Stud
- Frame - 42
- Air Conditioners
- Base Mounting Available
- Commercial Condenser Units
- Continuous Duty, Air Over Designed for Easy Mechanical Reversing
- Drain Holes
- Extra Long 30? Leads
- Fits G.E. Base
- Mounting Rings Included
- Lead Exit on Shaft End
- For 1/2? Shaft Applications use Stock No 1306 Shaft Bushing
- Holes Provided for Conduit Connector
- Refrigeration Cabinets
- Replaces Most G.E. 21/29 Frame Motors
- Replaces Universal Stock 401-406
- Shaded Pole
- Sleeve Bearing
- Thermally Protected
- Unit Cooler Fans & Blowers
- Unit Heaters
- 2-1/4? Mounting Rings Included
- 4 Tapped 10-32 Holes for Shaft End Mounting
- 60 Hz
Specs
–
| Type: | Shaded Pole |
|---|---|
| Horse Power: | 1/15 |
| Voltage: | 115V 208V 115/208-230v 230V |
| Duty: | Air Over |
| Poles: | 4 |
| Mount: | Resilient Rings |
| Bearings: | Sleeve |
| Phase: | 1 |
| Rotation: | CWLE |
| Enclosure Type: | Open Air Over |
| Hertz: | 60 |
| RPM: | 1550 |
| Amperage: | 2.8 |
| Frame: | 42Y |
| Speeds: | 1 |
| Insulation Class: | A |
| Shaft Length: | 3-1/4" |
| Overload Protection: | Automatic |
| Diameter (Inches): | 5" |
| Max Ambient Temp (°F): | 104°F |
| Motor Orientation: | Horizontal |
