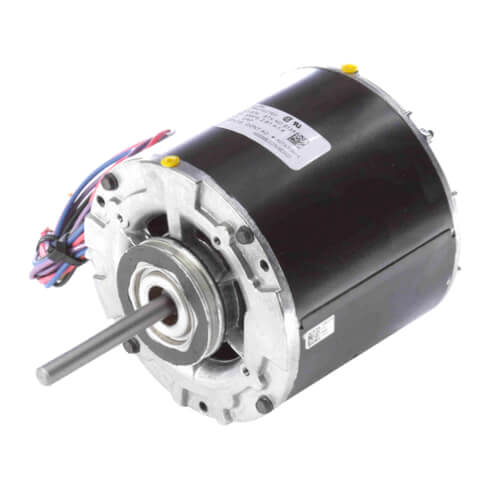

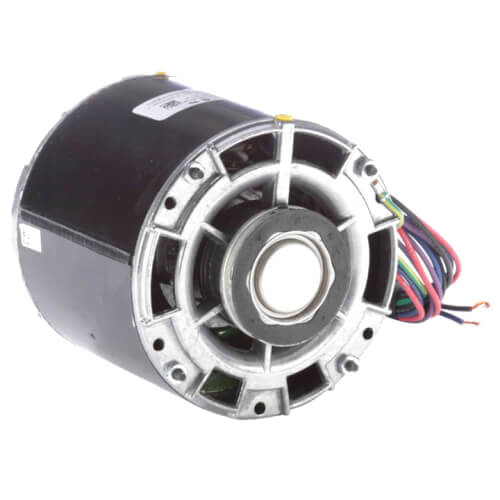

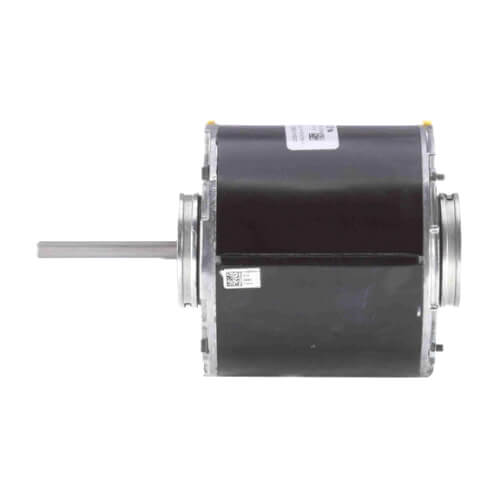

GE 21/29 5" Stock Motor w/ CCWSE (115/230V, 1550 RPM, 1/15 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
613A has been discontinued
Discontinued October 1, 2025
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
115/208-230v
1550 RPM
CCWSE
1/15 HP
Stud
2.8 Amps
Description
–
GE 21/29 5" Frame Replacement Motor (115/230V, 1550 RPM, 1/15 HP)
Features:
Features:
- Mount - Stud
- Frame - 42
- Air Conditioners
- Base Mounting Available
- Commercial Condenser Units
- Continuous Duty, Air Over Designed for Easy Mechanical Reversing
- Drain Holes
- Extra Long 30" Leads
- Fits G.E. Base
- Mounting Rings Included
- Lead Exit on Shaft End
- For 1/2" Shaft Applications use Stock No 1306 Shaft Bushing
- Holes Provided for Conduit Connector
- Refrigeration Cabinets
- Replaces Most G.E. 21/29 Frame Motors
- Replaces Universal Stock 401-406
- Shaded Pole
- Sleeve Bearing
- Thermally Protected
- Unit Cooler Fans & Blowers
- Unit Heaters
- 2-1/4" Mounting Rings Included
- 4 Tapped 10-32 Holes for Shaft End Mounting
- 60 Hz
Specs
–
| Type: | Shaded Pole |
|---|---|
| Horse Power: | 1/15 |
| Enclosure Type: | Open |
| Voltage: | 115/208-230v |
| Rotation: | CCWSE |
| Bearings: | Sleeve |
| Phase: | 1 |
| Frame: | 42 |
| RPM: | 1550 |
| Mount: | Stud |
| Amperage: | 2.8 |
| Speeds: | 1 |
| Shaft Length: | 3-1/4" |
| Diameter (Inches): | 5" |
