Description

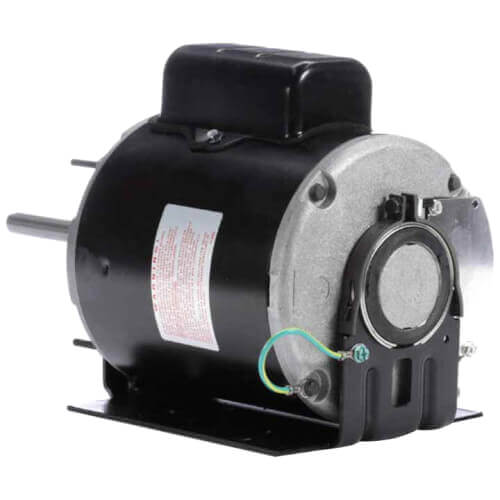

5-5/8" Totally Enclosed Fan/Blower Motor (115/208-240V, 1140 RPM, 1/4HP)

Features:
  • Continuous Duty, Air Over
  • Permanent Split Capacitor
  • Sleeve & Ball Bearing Models
  • Thermally Protected
  • 60 Hz
  • 48Y Frame
  • Capacitor included
Read more
Manuals (1)
Specs
Type:
Permanent Split Capacitor
Horse Power:
1/4
Voltage:
115/208-230v
115
230v
208v
Enclosure Type:
Totally Enclosed
Duty:
Air Over
Bearings:
Ball
Mount:
Resilient Base
Poles:
6
Phase:
1
Rotation:
Reversible
Amperage:
1.6
Frame:
48Y
RPM:
1140
Insulation Class:
B
Speeds:
1
Overload Protection:
Automatic
Max Ambient Temp (°F):
140°F
Motor Orientation:
Any
×
