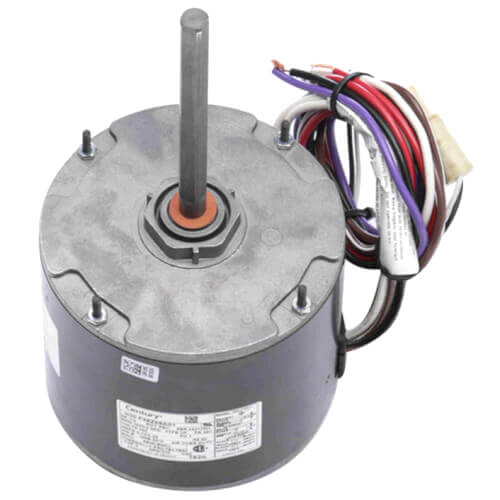

5-5/8" 2-Speed Outdoor Ball Bearing Motor w/ Open Lead End (460V, 1625 RPM, 1/4 HP)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$328.07 each
In Stock
MANUALS (1)
This item replaces: D918
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
460v
1625 RPM
Reversible
1/4 HP
Extended Studs
0.74 Amps
Description
–
Features:
- Auto Protector
- Class "B" Insulation
- Closed Except Lead End
- 1/2" Dia. Shaft - Dbl. Flat
- Continuous Duty, Air Over
- Extended Thrubolt, Shaft End
- 26" Leads (Minimum)
- 48 Frame
- Reversible
- Sleeve Bearing
- 60 HZ
- Reversing Plug
- Has hex mounting hub on both ends for cradle base mounting
- Includes conduit box, mounting screws, gasket, shipped detached
- Rewire for second speed
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Horse Power: | 1/4 |
| Voltage: | 460v |
| Bearings: | Ball |
| Rotation: | Reversible |
| Duty: | Air Over |
| Speeds: | 2 |
| RPM: | 1625 |
| Mount: | Extended Studs |
| Poles: | 4 |
| Phase: | 1 |
| Enclosure Type: | Semi-Enclosed |
| Hertz: | 60 |
| Frame: | 48Y |
| Amperage: | 0.74 |
| Insulation Class: | B |
| Overload Protection: | Automatic |
| Diameter (Inches): | 5-5/8" |
| Max Ambient Temp (°F): | 140°F |
| Motor Orientation: | Any |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Perfect Replacement
Bought this as a replacement fan motor for a new Dayton 480v 30kW unit heater. Grainger will not (currently) sell replacement motors for this heater because the failure rate is so high, and actually refunded the cost of the entire heater because of the failed motor. With a couple of modifications, this 2 speed reversable motor was the perfect replacement. I had to shorten the shaft, and because the motor is stud mounted I had to swap the thrubolts with the old motor because they were longer. The hex hubs on both ends made the motor slightly longer than the old one, making it a little difficult to maneuver into the heater, but not too bad.
TCP2
Holyoke, MA
5 months ago
Verified Buyer
