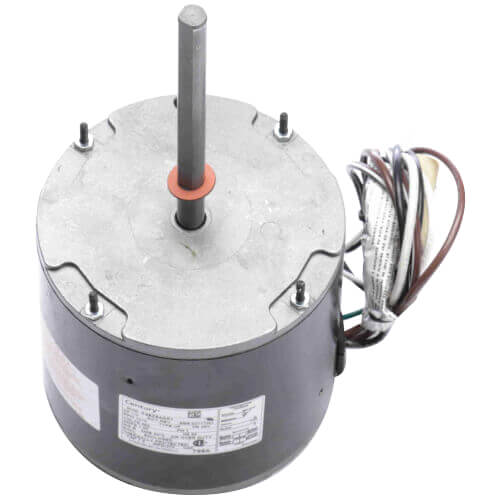

5-5/8" 1-Speed Outdoor Ball Bearing Motor (460V, 1075 RPM, 1/3 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
789A has been discontinued
Discontinued September 11, 2026
This product was discontinued by the manufacturer.
MANUALS (1)
Suggested Alternative:
5-5/8" Outdoor Ball Bearing Motor (460V, 1075 RPM, 1/3 HP)
Product Highlights
–
460v
1075 RPM
Reversible
1/3 HP
Extended Studs
1 Amps
Description
–
Features:
- All Angle Mount
- Ball Bearing
- Auto Protector
- 1/2" Dia. Shaft - Dbl. Flat
- Class "B" Insulation
- Continuous Duty, Air Over
- 26" Leads (Minimum)
- Energy Efficient
- Extended Thru Bolts - Both Ends
- 60 Degrees C Ambient
- 60 Hz
- Includes conduit box, mounting screws, gasket, shipped detached
- No hubs on either end
- Extended thru bolts, shaft end only
- Reversible. Quick connect terminals
- No hubs on either end
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Horse Power: | 1/3 |
| Voltage: | 460v |
| Bearings: | Ball |
| Rotation: | Reversible |
| Duty: | Air Over |
| Mount: | Extended Studs |
| RPM: | 1075 |
| Poles: | 6 |
| Phase: | 1 |
| Enclosure Type: | Totally Enclosed |
| Hertz: | 60 |
| Speeds: | 1 |
| Frame: | 48Y |
| Amperage: | 1 |
| Insulation Class: | B |
| Overload Protection: | Automatic |
| Diameter (Inches): | 5-5/8" |
| Max Ambient Temp (°F): | 140°F |
| Motor Orientation: | Any |
