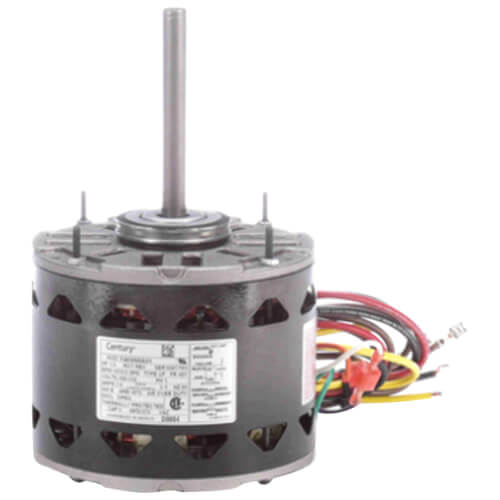

Main product image of 5-5/8" 2-Speed Standard Efficiency Indoor Blower Motor (208-230V, 1075 RPM, 1/3 HP)

Hover image to zoom

5-5/8" 2-Speed Standard Efficiency Indoor Blower Motor (208-230V, 1075 RPM, 1/3 HP)

Name: 5-5/8" 2-Speed Standard Efficiency Indoor Blower Motor (208-230V, 1075 RPM, 1/3 HP)
Brand: Century
SKU: D0004
Price: 148.92 USD
Availability: OutOfStock

Brand:

Century

SKU:

D0004

Rating:

(0)

Q&A:

(0)

5-5/8" 2-Speed Standard Efficiency Indoor Blower Motor (208-230V, 1075 RPM, 1/3 HP)

Hover image to zoom

D0004 has been discontinued

Discontinued September 1, 2023

This product was discontinued by the manufacturer.

MANUALS (1)

Brochure

Product Highlights

–

208/230V

1075 RPM

Reversible

1/3 HP

Resilient Rings

5-5/8" Diameter

Description

–

5-5/8" 2-Speed Standard Efficiency Indoor Blower Motor (208-230V, 1075 RPM, 1/3 HP)

Features:

Auto Protector
Open Construction
Standard Efficiency
26" Leads
Class B Insulation
Permanent Split Capacitor
2-1/4” Rings with 2-1/2” Adapters included
48 Frame (5-5/8” Dia.)
Continuous Air Over
40° C Ambient
60 HZ only
Lead Reversible
Sleeve Bearing

Specs

–

Type:	Permanent Split Capacitor
Motor:	Permanent Split Capacitor
Horse Power:	1/3
Bearings:	Sleeve
Voltage:	208/230V
Duty:	Air Over
RPM:	1075
Poles:	6
Mount:	Resilient Rings
Rotation:	Reversible
Enclosure Type:	Open
Speeds:	2
Hertz:	60
Capacitor:	5MFD-370V
Frame:	48Y
Phase:	1
Insulation Class:	B
Overload Protection:	Automatic
Diameter (Inches):	5-5/8"
Max Ambient Temp (°F):	104°F
Motor Orientation:	Horizontal
