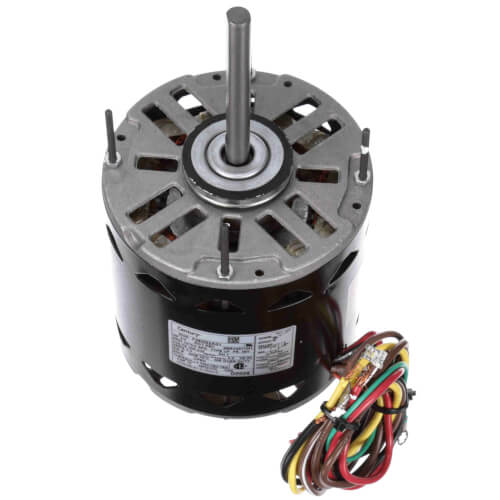

5-5/8" 2-Speed Standard Efficiency Indoor Blower Motor (208-230V, 1075 RPM, 3/4 HP)

Features:
  • Auto Protector
  • Open Construction
  • Standard Efficiency
  • 26" Leads
  • Class B Insulation
  • Permanent Split Capacitor
  • 2-1/4” Rings with 2-1/2” Adapters included
  • 48 Frame (5-5/8” Dia.)
  • Continuous Air Over
  • 40° C Ambient
  • 60 HZ only
  • Lead Reversible
  • Sleeve Bearing
Read more
Manuals (1)
Specs
Type:
Permanent Split Capacitor
Motor:
Permanent Split Capacitor
Horse Power:
3/4
Bearings:
Sleeve
Voltage:
208/230v
RPM:
1075
Duty:
Air Over
Poles:
6
Mount:
Resilient Rings
Enclosure Type:
Open
Rotation:
Reversible
Speeds:
2
Frame:
48Y
Capacitor:
10MFD-370V
Insulation Class:
B
Phase:
1
Overload Protection:
Automatic
Max Ambient Temp (°F):
104°F
Motor Orientation:
Horizontal
×
