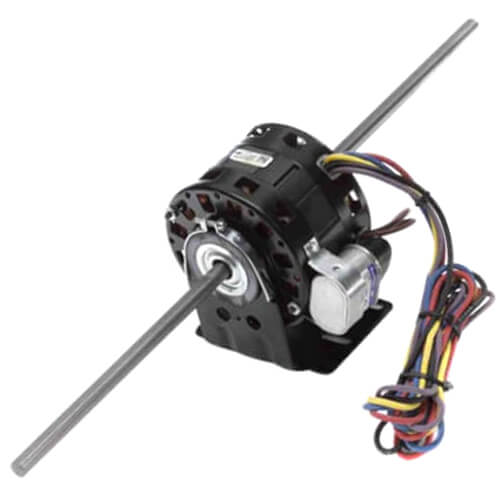

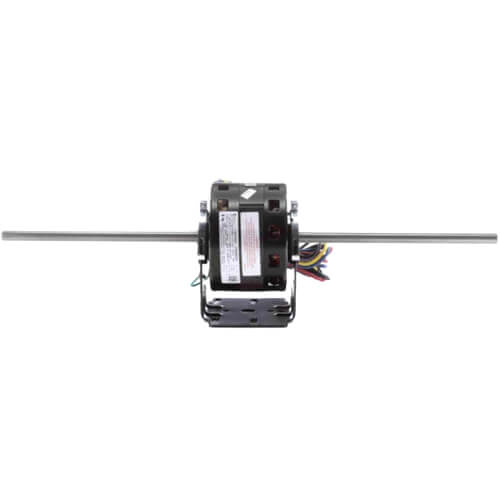

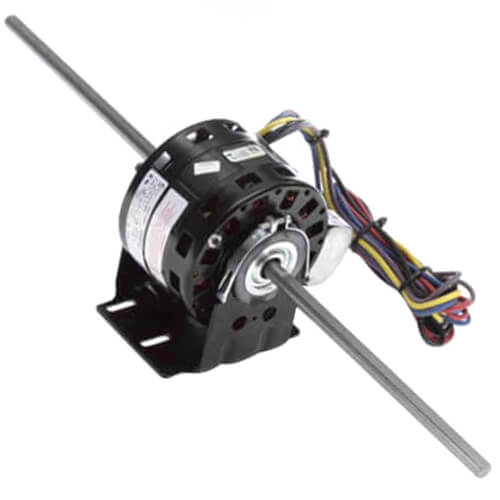

Main product image of 5" 4-Speed Double Shaft Fan/Blower Motor (208-230V, 1075 RPM, 1/10, 1/15, 1/20, 1/25 HP)

Hover image to zoom

Home

HVAC Supplies

Motors & Accessories

Motors and Draft Inducers

Century Motors

5-Inch Diameter Motors

5 Inch Double Shaft Fan/Blower Motors

5" 4-Speed Double Shaft Fan/Blower Motor (208-230V, 1075 RPM, 1/10, 1/15, 1/20, 1/25 HP)

Name: 5" 4-Speed Double Shaft Fan/Blower Motor (208-230V, 1075 RPM, 1/10, 1/15, 1/20, 1/25 HP)
Brand: Century
SKU: DB6502V1
Price: 223.73 USD
Availability: InStock

Brand:

Century

SKU:

DB6502V1

Rating:

(0)

Q&A:

(0)

5" 4-Speed Double Shaft Fan/Blower Motor (208-230V, 1075 RPM, 1/10, 1/15, 1/20, 1/25 HP)

Hover image to zoom

DB6502V1 has been discontinued

Discontinued June 14, 2024

This product was discontinued by the manufacturer.

MANUALS (1)

Brochure

Direct Replacement:

5" 4-Speed Double Shaft Fan/Blower Motor (208-230V, 1075 RPM, 1/10, 1/15, 1/20, 1/25 HP)

Brand:

Century

SKU:DB6502V1A

(0)

Out of Stock

Get it Wed, Jul 9 - Wed, Jul 16

VIEW REPLACEMENT

Product Highlights

–

208/230V

1075 RPM

CCWLE

1/15, 1/25, 1/10, 1/20 HP

Resilient Base

0.5, 0.4, 0.3, 0.7 Amps

Description

–

5" 4-Speed Double Shaft Fan/Blower Motor (208-230V, 1075 RPM, 1/10, 1/15, 1/20, 1/25 HP)

Features:

Permanent Split Capacitor
Sleeve Bearing
Automatic Overload
Open Enclosure
60 HZ
Single Phase

Specs

–

Type:	Permanent Split Capacitor
Horse Power:	1/15 1/25 1/10 1/20
Bearings:	Sleeve
Voltage:	208/230V
Duty:	Air Over
Mount:	Resilient Base
RPM:	1075
Poles:	6
Rotation:	CCWLE
Enclosure Type:	Open
Hertz:	60
Speeds:	4
Amperage:	0.5 0.4 0.3 0.7
Frame:	42Y
Phase:	1
Insulation Class:	B
Overload Protection:	Automatic
Max Ambient Temp (°F):	104°F
Motor Orientation:	Horizontal
