EL2024 has been discontinued
Discontinued January 23, 2018
This product was discontinued by the manufacturer.
MANUALS (1)
Direct Replacement:
Product Highlights
–
115V
1725 RPM
Reversible
1/4 HP
3.7 Amps
Description
–

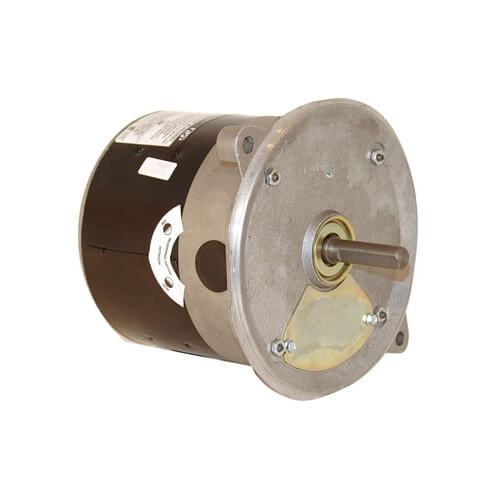

5-5/8" Oil Burner Motor (115V, 1725 RPM, 1/4 HP)
Applications: Domestic high and low pressure oil burners and other applications where 48M and 48N flange mounting is required. This line of motors includes open (enclosed except for shaft end bracket) and totally enclosed designs to meet all requirements. All mounting dimensions such as location of ears, diameter of rabbet fit and shaft size are in accordance with NEMA standards. Most of the normally stocked replacement ratings feature the external reversing switch for ease of use in those tight, dark and dirty locations. All ratings include sleeve bearings for quiet operation and manual reset thermal overload protectors for safe, dependable use.
Applications: Domestic high and low pressure oil burners and other applications where 48M and 48N flange mounting is required. This line of motors includes open (enclosed except for shaft end bracket) and totally enclosed designs to meet all requirements. All mounting dimensions such as location of ears, diameter of rabbet fit and shaft size are in accordance with NEMA standards. Most of the normally stocked replacement ratings feature the external reversing switch for ease of use in those tight, dark and dirty locations. All ratings include sleeve bearings for quiet operation and manual reset thermal overload protectors for safe, dependable use.
Specs
–
| Frame: | 48N |
|---|---|
| Horse Power: | 1/4 |
| Bearings: | Sleeve |
| Voltage: | 115V |
| Motor: | Split Phase |
| RPM: | 1725 |
| Rotation: | Reversible |
| Enclosure Type: | Totally Enclosed |
| Phase: | 1 |
| Amperage: | 3.7 |
