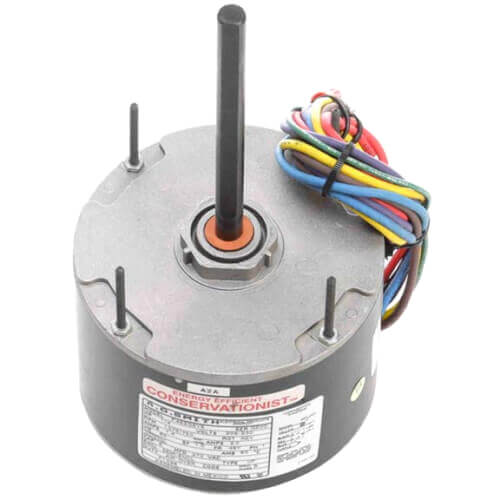

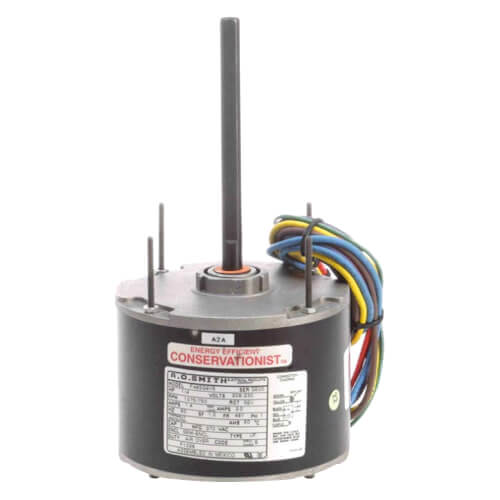

Main product image of 5-5/8" 2-Speed Outdoor Ball Bearing Motor (208-230V, 1075 RPM, 1/4 HP)
Magnifying glass
Hover image to zoom

5-5/8" 2-Speed Outdoor Ball Bearing Motor (208-230V, 1075 RPM, 1/4 HP)

Brand:
Century
SKU:
F1026
Rating:
(0)
Q&A:
(0)
5-5/8" 2-Speed Outdoor Ball Bearing Motor (208-230V, 1075 RPM, 1/4 HP)
Magnifying glass
Hover image to zoom
$315.54 each
In Stock
In Stock
Get 3 Tomorrow, Jul 10
Order by 2PM, receive Tomorrow

MANUALS (1)

Brochure
Brochure
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
208/230V
Product Highlight: RPM
750, 1075 RPM
Product Highlight: Rotation
Reversible
Product Highlight: Horse Power
1/4 HP
Product Highlight: Mount
Extended Studs
Product Highlight: Amperage
1.4 Amps

Description

–
5-5/8" 2-Speed Outdoor Ball Bearing Motor (208-230V, 1075 RPM, 1/4 HP)

Features:
  • Energy Efficient $
  • All Angle Mount
  • Permanent Split Capacitor
  • 60°C Ambient
  • Class B Insulation
  • Auto Protector
  • Ball or Sleeve Bearing
  • Reversible
  • 1/2" Dia. Flatted Shaft
  • 4, 6 , and 8 Pole
  • 26" (Minimum) to 48" Leads
  • Extended Thru Bolts
  • 60 HZ

Specs

–
Type:

Permanent Split Capacitor

Horse Power:

1/4

Bearings:

Ball

Voltage:

208/230V

Duty:

Air Over

Rotation:

Reversible

RPM:

750

1075

Mount:

Extended Studs

Speeds:

2

Poles:

6

Phase:

1

Hertz:

60

Enclosure Type:

Semi-Enclosed

Frame:

48Y

Amperage:

1.4

Insulation Class:

B

Overload Protection:

Automatic

Diameter (Inches):

5-5/8"

Max Ambient Temp (°F):

140°F

Motor Orientation:

Any
