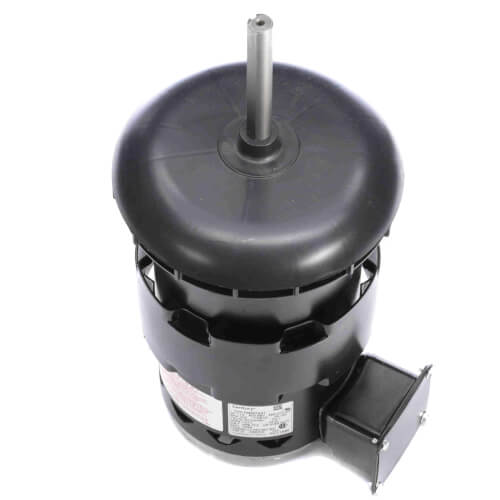

5-5/8" Deluxe Commercial Condenser Fan Motor w/ 5/8" Flat & Key-B (6.4/3.2A, 1075 RPM, 1 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$578.22 each
In Stock
Get 12 Thu, Apr 6
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
200-230/460v, 460v
1075 RPM
Reversible
1 HP
Round Belly Band
3.2, 6.4 Amps
Description
–
5-5/8" Deluxe Commercial Condenser Fan Motor w/ 5/8" Flat & Key-B (6.4/3.2A, 1075 RPM, 1 HP)
Note: Single phase motors capacitor not included.
Features:
Note: Single phase motors capacitor not included.
Features:
- Energy Efficient
- "Patented" Fan Canopy
- Auto Protector
- Vertical shaft up only
- Class B or Class F Insulation
- 48 Frame
- Heavy duty Ball Bearing
- 60C or 70C Ambient
- High Thrust Capacity
- 60 HZ Only
- Reversible
- Works with 25MFD/370V capacitor
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Horse Power: | 1 |
| Voltage: | 200-230/460v 460v |
| Rotation: | Reversible |
| Duty: | Air Over |
| Bearings: | Double Sealed Ball |
| Poles: | 6 |
| Mount: | Round Belly Band |
| RPM: | 1075 |
| Phase: | 1 |
| Enclosure Type: | Open |
| Hertz: | 60 |
| Speeds: | 1 |
| Frame: | 48Y |
| Amperage: | 3.2 6.4 |
| Insulation Class: | F |
| Overload Protection: | Automatic |
| Diameter (Inches): | 5-5/8" |
| Max Ambient Temp (°F): | 158°F |
| Motor Orientation: | Vertical Shaft Up |
