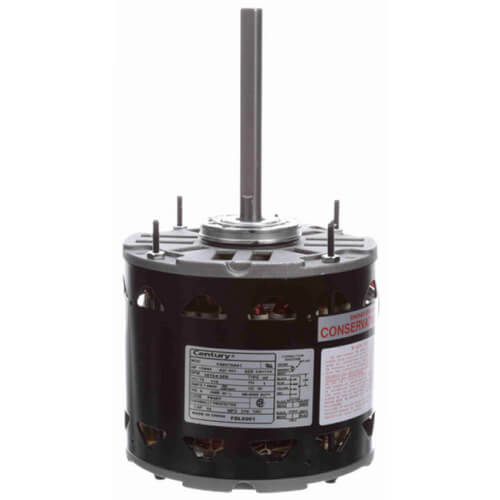

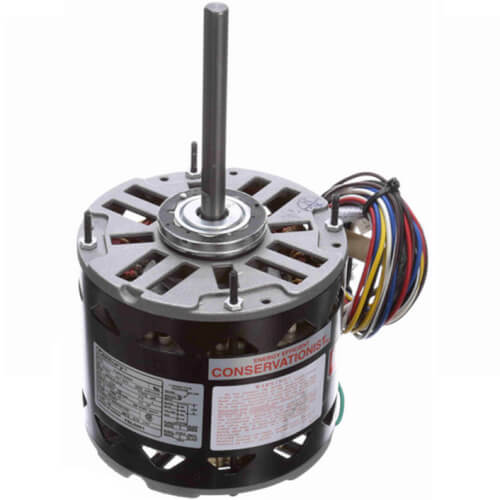

Main product image of 5-5/8" 3-Speed Indoor Blower Motor (208-230V, 1625 RPM, 1/3 HP)

Hover image to zoom

5-5/8" 3-Speed Indoor Blower Motor (208-230V, 1625 RPM, 1/3 HP)

Name: 5-5/8" 3-Speed Indoor Blower Motor (208-230V, 1625 RPM, 1/3 HP)
Brand: Century
SKU: FD1034
Price: 207.04 USD
Availability: OutOfStock

Brand:

Century

SKU:

FD1034

Rating:

(0)

Q&A:

(0)

5-5/8" 3-Speed Indoor Blower Motor (208-230V, 1625 RPM, 1/3 HP)

Hover image to zoom

FD1034 has been discontinued

Discontinued March 11, 2022

This product was discontinued by the manufacturer.

This item replaces: D781

Direct Replacement:

5-5/8" 3-Speed Indoor Blower Motor (208-230V, 1625 RPM, 1/3 HP)

Brand:

Century

SKU:454A

(0)

Order by 2PM, receive 4 by Tomorrow

VIEW REPLACEMENT

Product Highlights

–

208V, 230V, 208/230V

1625 RPM

Reversible

1/3 HP

Resilient Rings

2 Amps

Description

–

5-5/8" 3-Speed Indoor Blower Motor (208-230V, 1625 RPM, 1/3 HP)

Features:

60 HZ
Single Phase
Automatic Overload
48 Frame
Mounting Kit
Permanent Split Capacitor

**Image may not represent actual product.**

Specs

–

Type:	Permanent Split Capacitor
Horse Power:	1/3
Voltage:	208V 230V 208/230V
Bearings:	Sleeve
RPM:	1625
Duty:	Air Over
Amperage:	2
Mount:	Resilient Rings
Poles:	4
Rotation:	Reversible
Enclosure Type:	Open Air Over
Speeds:	3
Hertz:	60
Frame:	48Y
Capacitor:	5MFD-370V
Insulation Class:	A
Phase:	1
Diameter (Inches):	5-5/8"
Overload Protection:	Automatic
Max Ambient Temp (°F):	122°F
Motor Orientation:	Any
