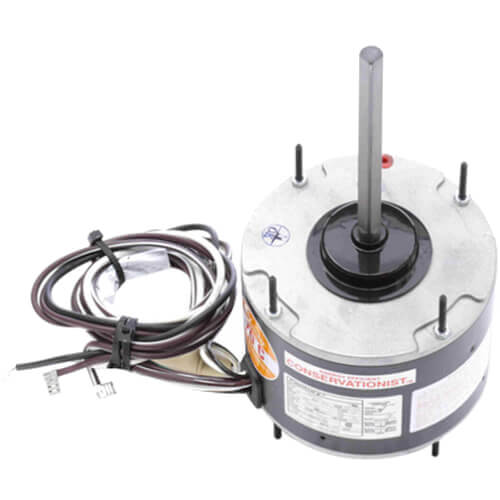

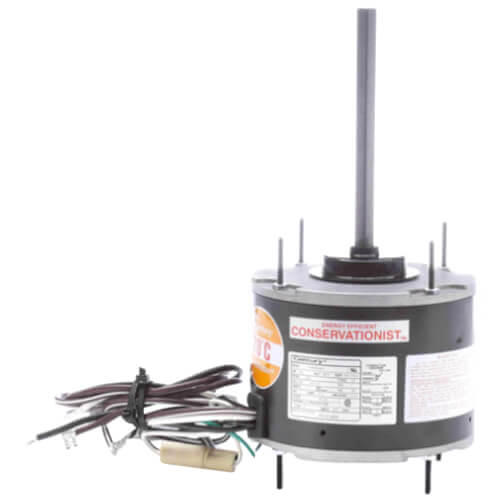

5-5/8" 1-Speed Outdoor Ball Bearing PSC Motor (1.1A, 208-230V, 825 RPM, 1/6 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$349.05 each
In Stock
Get 43 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
This item replaces: 3203, 3403, FSE1018SF
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
825 RPM
Reversible
1/6 HP
Extended Studs
1.1 Amps
Description
–
5-5/8" 1-Speed Outdoor Ball Bearing PSC Motor (1.1A, 208-230V, 825 RPM, 1/6 HP)
Features:
Features:
- Energy Efficient $
- Permanent Split Capacitor
- Class B or Class F Insulation
- Ball or SLeeve Bearing
- 1/2" Diamater Flatted Shaft
- 26" to 48" Leads
- 60 Hz
- All Angle Mount
- 60 or 70C Ambient
- Auto Protector
- Reversible
- 6 and 8 Pole
- Extended Thru Bolts
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Horse Power: | 1/6 |
| Bearings: | Ball |
| Voltage: | 208/230V |
| Rotation: | Reversible |
| Duty: | Air Over |
| Mount: | Extended Studs |
| RPM: | 825 |
| Poles: | 8 |
| Phase: | 1 |
| Enclosure Type: | Totally Enclosed |
| Hertz: | 60 |
| Frame: | 48 |
| Speeds: | 1 |
| Amperage: | 1.1 |
| Insulation Class: | F |
| Overload Protection: | Automatic |
| Max Ambient Temp (°F): | 158°F |
| Motor Orientation: | Any |
