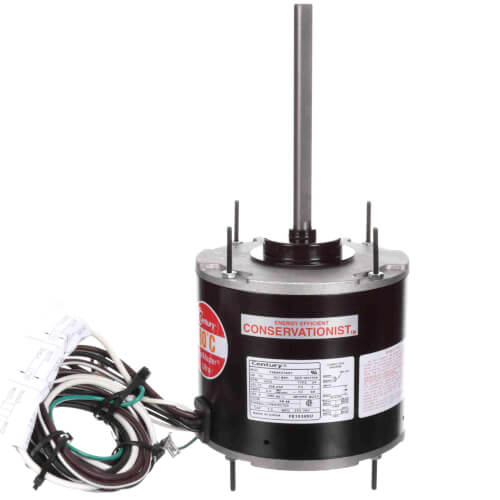

Main product image of 5-5/8" PSC Motor, 1/3 HP, 1075 RPM, Reversible (208-230V)
Magnifying glass
Hover image to zoom

5-5/8" PSC Motor, 1/3 HP, 1075 RPM, Reversible (208-230V)

Brand:
Century
SKU:
FE1036SU
Rating:
(0)
Q&A:
(1)
5-5/8" PSC Motor, 1/3 HP, 1075 RPM, Reversible (208-230V)
Magnifying glass
Hover image to zoom
$204.16 each
In Stock
In Stock
Get 4 Wed, Jul 22
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
208/230V
Product Highlight: RPM
1075 RPM
Product Highlight: Rotation
Reversible
Product Highlight: Horse Power
1/3 HP
Product Highlight: Mount
Extended Studs
Product Highlight: Amperage
2.5 Amps

Description

–
5-5/8" PSC Motor, 1/3 HP, 1075 RPM, Reversible (208-230V)

Features:
  • 80ºC (176ºF) max ambient
  • Double sealed ball bearings with high temperature synthetic grease
  • Energy-efficient PSC design
  • Mounts by belly band, adjustable extended thru-bolts, or Rheem/Trane mounting holes, with screws supplied
  • Works with Johnson Controls Speed controls

***Note: Image may not be actual representation of item .

Specs

–
Product Type:

Motor

Type:

Permanent Split Capacitor

Diameter (Inches):

5-5/8"

Horse Power:

1/3

Voltage:

208/230V

Duty:

Air Over

Speeds:

1

Poles:

6

Mount:

Extended Studs

Phase:

1

RPM:

1075

Rotation:

Reversible

Enclosure Type:

Totally Enclosed

Totally Enclosed Air Over (TEAO)

Bearings:

Double Sealed Ball

Frame:

48

Hertz:

60

Amperage:

2.5

Insulation Class:

F

Overload Protection:

Automatic

Max Ambient Temp (°F):

176°F

Motor Orientation:

Any

Contact

Help Face
CALL US
Question? Call or text 888-757-4774
+
Help Face

Questions?

Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Open Now:
9:00am–5:45pm
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Response by Tue

QUICK SUPPORT

Order StatusShipping PolicyReturnsIs My Item in Stock?Request Item for Site

Product Q&A

1 Question
1 Question
ASK A QUESTION

Q: What is the FLA for this motor. or AMP draw, I need a 1/3 HP 208-230V 60HZ 1.2 Amp 1075 RPM electric motor.

Asked by Garrett 9 years ago

Add your answer

* Required Field
Verified Author and ReplyVerified Reply- SupplyHouse Staff

FE1036SU has an FLA of 2.5A.
