$259.88 each
In Stock
Get 2 Tue, Jul 7
Order by today, receive Tuesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
1075 RPM
Reversible
3/4 HP
Extended Studs
5.1 Amps
Description
–

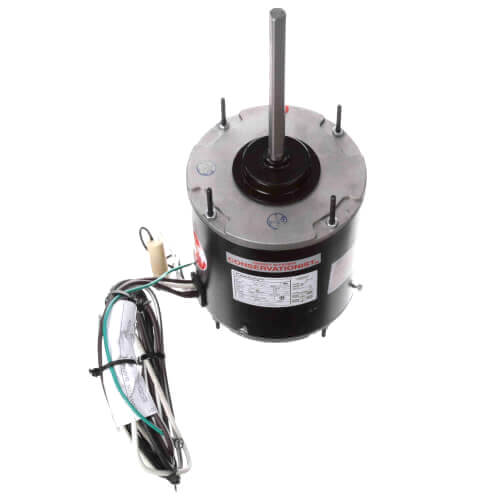

5-5/8" PSC Motor, 3/4 HP, 1075 RPM, Reversible (208-230V)
Features:
***Note: Image may not be actual representation of item .
Features:
- 80ºC (176ºF) max ambient
- Double sealed ball bearings with high temperature synthetic grease
- Energy-efficient PSC design
- Mounts by belly band, adjustable extended thru-bolts, or Rheem/Trane mounting holes, with screws supplied
- Works with Johnson Controls Speed controls
***Note: Image may not be actual representation of item .
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Product Type: | Motor |
| Diameter (Inches): | 5-5/8" |
| Horse Power: | 3/4 |
| Voltage: | 208/230V |
| Speeds: | 1 |
| Duty: | Air Over |
| RPM: | 1075 |
| Bearings: | Ball |
| Mount: | Extended Studs |
| Poles: | 6 |
| Phase: | 1 |
| Rotation: | Reversible |
| Frame: | 48 |
| Hertz: | 60 |
| Insulation Class: | F |
| Enclosure Type: | Totally Enclosed Air Over (TEAO) |
| Amperage: | 5.1 |
| Overload Protection: | Automatic |
| Max Ambient Temp (°F): | 176°F |
| Motor Orientation: | Any |
