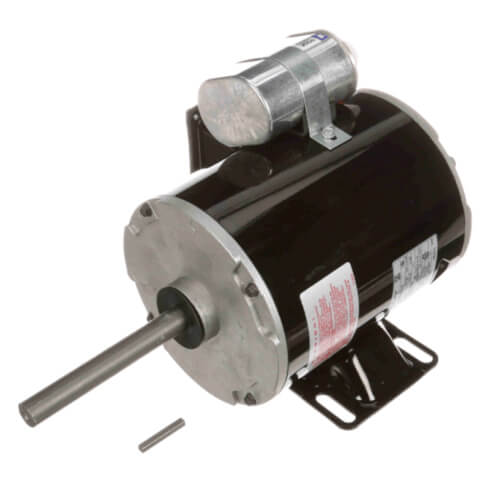

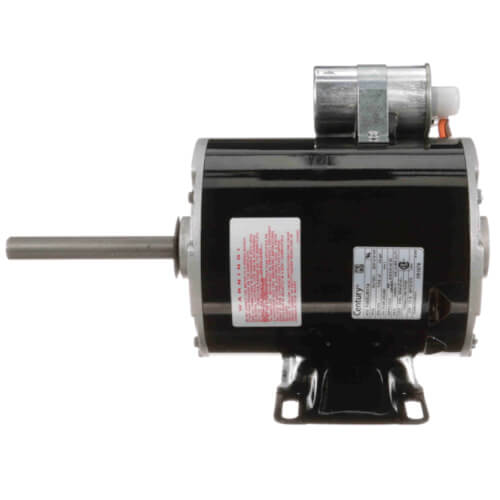

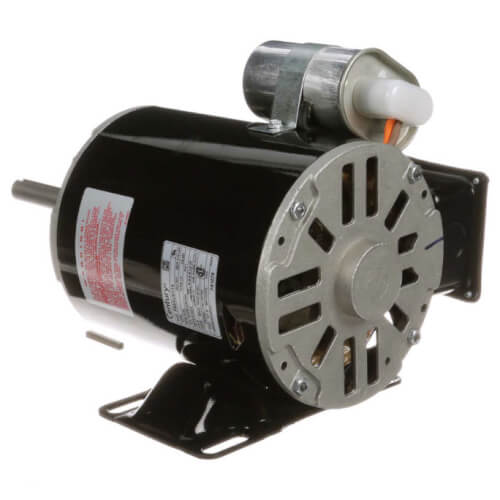

6-1/2" Outdoor Ball Bearing Condenser Fan Motor (208-230/460V, 1075 RPM, 3/4 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$555.53 each
Backorder
Get it Mon, Apr 24 - Mon, May 1
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208-230/460v
1075 RPM
Reversible
3/4 HP
Rigid Base
5, 2.5 Amps
Description
–
6-1/2" Outdoor Ball Bearing Condenser Fan Motor (208-230/460V, 1075 RPM, 3/4 HP)
Features:
Note: Use amps as well as HP for replacement reference.
Features:
- Auto Protector
- Base Mounted
- Ball Bearing
- Capac. Mounted (Single Phase)
- Open Lead End Only
- Reversible
- 1.0 Service Factor
- 60Hz
Note: Use amps as well as HP for replacement reference.
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Frame: | 48Y |
| Horse Power: | 3/4 |
| Bearings: | Ball |
| Voltage: | 208-230/460v |
| Duty: | Air Over |
| RPM: | 1075 |
| Mount: | Rigid Base |
| Poles: | 6 |
| Phase: | 1 |
| Speeds: | 1 |
| Enclosure Type: | Open Air Over |
| Hertz: | 60 |
| Rotation: | Reversible |
| Amperage: | 5 2.5 |
| Insulation Class: | B |
| Overload Protection: | Automatic |
| Max Ambient Temp (°F): | 140°F |
| Motor Orientation: | Any |
