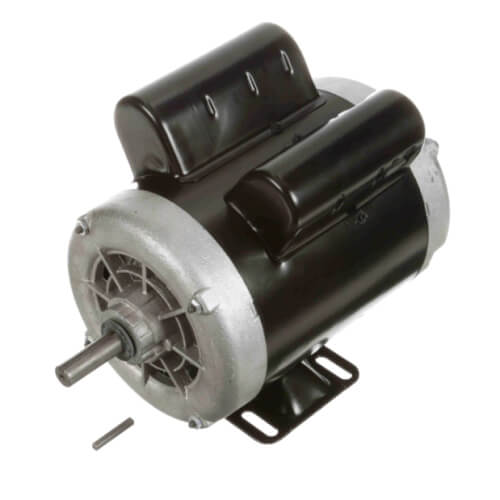

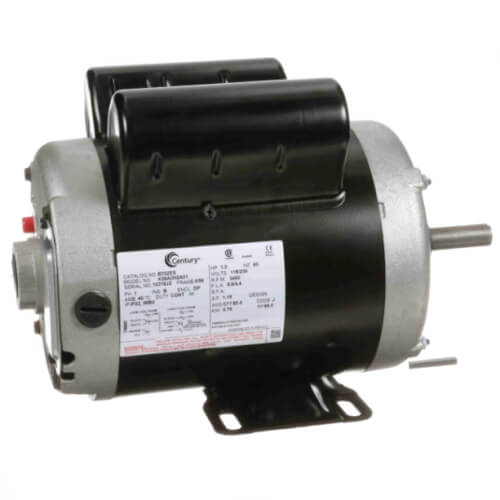

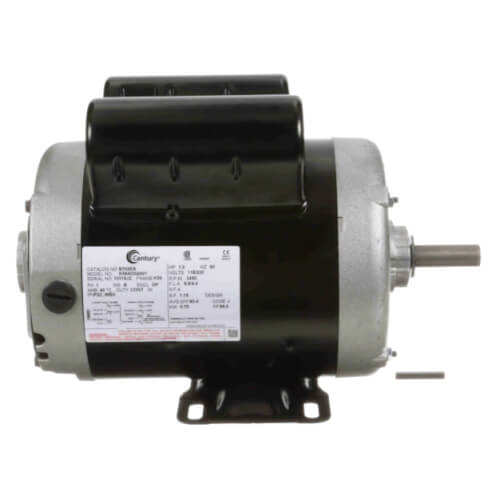

Main product image of Capacitor Start ODP Rigid Base Motor, 1/4 HP, 1725 RPM (115/208-230V)

Hover image to zoom

Capacitor Start ODP Rigid Base Motor, 1/4 HP, 1725 RPM (115/208-230V)

Name: Capacitor Start ODP Rigid Base Motor, 1/4 HP, 1725 RPM (115/208-230V)
Brand: Century
SKU: OB1024
Price: 437.96 USD
Availability: OutOfStock

Brand:

Century

SKU:

OB1024

Rating:

(0)

Q&A:

(0)

Capacitor Start ODP Rigid Base Motor, 1/4 HP, 1725 RPM (115/208-230V)

Hover image to zoom

OB1024 has been discontinued

Discontinued October 30, 2023

This product was discontinued because the part number was changed by the manufacturer. No modifications were made to the replacement product.

MANUALS (1)

Brochure

Direct Replacement:

1/4 HP 115/230v General Purpose Motor, 1 PH, 1800 RPM, 48 Frame, ODP

Brand:

Century

SKU:OB1024ES

(0)

VIEW REPLACEMENT

Product Highlights

–

115/208-230v

1725 RPM

Reversible

1/4 HP

Rigid Base

5.4, 2.7 Amps

Description

–

Capacitor Start ODP Rigid Base Motor, 1/4 HP, 1725 RPM (115/208-230V)

Applications: Compressors, pumps, conveyors , milking machines, blowers & fans

Features:

Capacitor Start
Rigid Base
High Start Torque
40C Ambient
Open Dripproof
60 Hz
Reversible

Note: Image may not be actual representation of item .

Specs

–

Product Type:	Motor
Type:	Capacitor Start Induction Run
Frame:	48
Horse Power:	1/4
Voltage:	115/208-230v
Speeds:	1
Duty:	Continuous
Phase:	1
Mount:	Rigid Base
Rotation:	Reversible
Hertz:	60
Bearings:	Ball
Enclosure Type:	Open Air Over
Amperage:	5.4 2.7
Insulation Class:	B
RPM:	1725
Overload Protection:	None
Poles:	4
Max Ambient Temp (°F):	104°F
