OFC1024 has been discontinued
Discontinued August 13, 2025
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
208/230V
1625 RPM
CCWLE
1/4 HP
Resilient Rings
1.8 Amps
Description
–

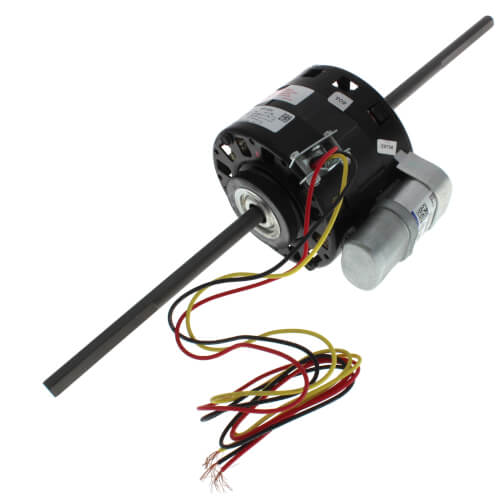

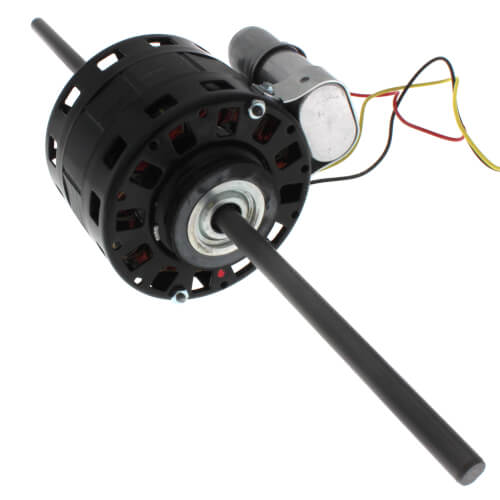

5" First Co./Summit OEM Motor (208-230V, 1625 RPM, 1/4 HP)
Note: Image may not be actual representation of item.
Note: Image may not be actual representation of item.
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| OEM: | First Co./Summit |
| Horse Power: | 1/4 |
| Voltage: | 208/230V |
| Duty: | Air Over |
| Bearings: | Sleeve |
| Mount: | Resilient Rings |
| Poles: | 4 |
| RPM: | 1625 |
| Rotation: | CCWLE |
| Enclosure Type: | Open |
| Hertz: | 60 |
| Speeds: | 2 |
| Phase: | 1 |
| Frame: | 42Y |
| Amperage: | 1.8 |
| Insulation Class: | A |
| Motor: | Permanent Split Capacitor |
| Overload Protection: | Automatic |
| Max Ambient Temp (°F): | 104°F |
| Motor Orientation: | Horizontal |
