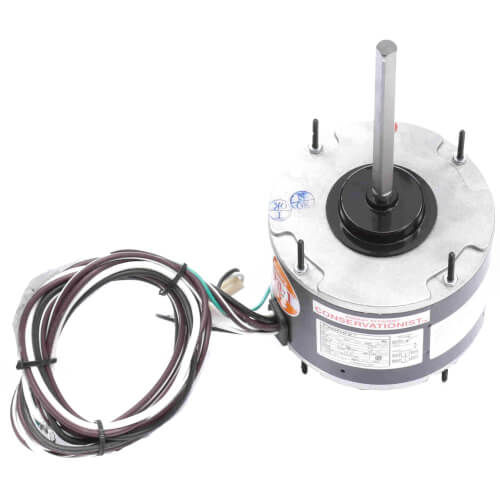

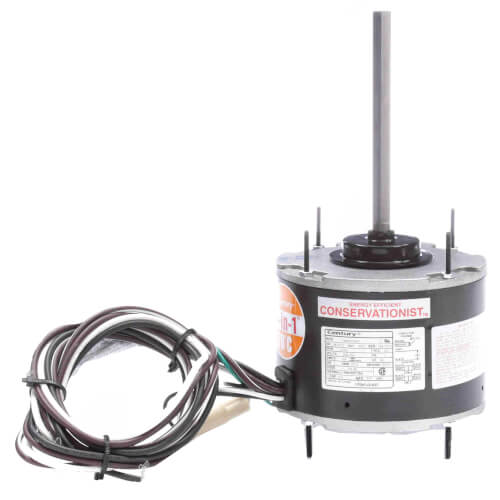

5-5/8" HeatMaster Condenser Fan Motor (208-230V, 1075 RPM, 1/8HP - 1/15HP)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$154.43 each
In Stock
Order by today, receive Thursday
MANUALS (1)
This item replaces: ORM5454F
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
1075 RPM
Reversible
1/8, 1/15 HP
Extended Studs
0.8 Amps
Description
–
5-5/8" HeatMaster Condenser Fan Motor (208-230V, 1075 RPM, 1/5, 1/8 HP)
Features:
Features:
- All Angle Mounting
- Class B or F Insulation
- Energy Efficient PSC Design
- Multi-application, Condenser Fans
- Removable Drain Plugs Each End
- Reversible
- Rheem Mounting Holes (Screws Included)
- 60 or 70C Ambient
- Sleeve or Ball Bearing
- Totally Enclosed
- UL and CSA Approved
- 48Y Frame
- 36" Leads or 48 Leads
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Horse Power: | 1/8 1/15 |
| Voltage: | 208/230V |
| Duty: | Air Over |
| Poles: | 6 |
| RPM: | 1075 |
| Bearings: | Sleeve |
| Mount: | Extended Studs |
| Enclosure Type: | Totally Enclosed |
| Rotation: | Reversible |
| Hertz: | 60 |
| Speeds: | 1 |
| Phase: | 1 |
| Frame: | 48 |
| Amperage: | 0.8 |
| Insulation Class: | F |
| Overload Protection: | Automatic |
| Max Ambient Temp (°F): | 158°F |
| Motor Orientation: | Any |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Great fit and runs quiet
Motor fit well after i shortened the shaft. Runs good and should perform well when our AC season returns next summer. I replaced a noisy motor that was starting to hang up.
DR
Milwaukee WI
10 months ago
Verified Buyer
