Apply to be a TradeMaster!

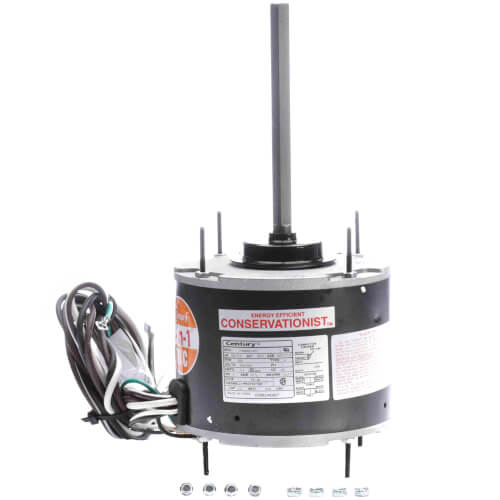

Main product image of 5-5/8" HeatMaster Condenser Fan Motor - Deluxe Model (208-230V, 825 RPM, 1/8, 1/15 HP)
Magnifying glass
Hover image to zoom

5-5/8" HeatMaster Condenser Fan Motor - Deluxe Model (208-230V, 825 RPM, 1/8, 1/15 HP)

Brand:
Century
SKU:
ORM5484BF
Rating:
(0)
Q&A:
(0)
5-5/8" HeatMaster Condenser Fan Motor - Deluxe Model (208-230V, 825 RPM, 1/8, 1/15 HP)
Magnifying glass
Hover image to zoom
$156.05 each
In Stock
In Stock
Get 11 Wed, Jul 8
Order by today, receive Wednesday

MANUALS (1)

Brochure
Brochure
This item replaces: ORM5484F, 3201
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
208/230V
Product Highlight: RPM
825 RPM
Product Highlight: Rotation
Reversible
Product Highlight: Horse Power
1/8, 1/15 HP
Product Highlight: Mount
Extended Studs
Product Highlight: Amperage
1 Amps

Description

–

5-5/8" HeatMaster Condenser Fan Motor - Deluxe Model (208-230V, 825 RPM, 1/8, 1/15 HP)


Features:

  • All Angle Mounting
  • Class B or F Insulation
  • Energy Efficient PSC Design
  • Multi-application, Condenser Fans
  • Removable Drain Plugs Each End
  • Reversible
  • Rheem Mounting Holes (Screws Included)
  • 60 or 70C Ambient
  • Sleeve or Ball Bearing
  • Totally Enclosed
  • UL and CSA Approved
  • 48Y Frame
  • 36" Leads or 48 Leads

Specs

–
Type:

Permanent Split Capacitor

Horse Power:

1/8

1/15

Voltage:

208/230V

Duty:

Air Over

Bearings:

Sleeve

Mount:

Extended Studs

Poles:

8

RPM:

825

Enclosure Type:

Totally Enclosed

Rotation:

Reversible

Speeds:

1

Hertz:

60

Phase:

1

Frame:

48

Amperage:

1

Insulation Class:

F

Overload Protection:

Automatic

Max Ambient Temp (°F):

158°F

Motor Orientation:

Any
