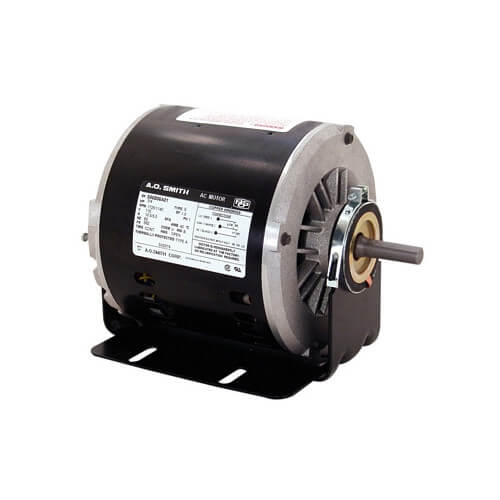

6-1/2" Single Speed Evaporative Cooler Motor (115V, 1725 RPM, 8A, 1/2 HP)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
OTEB2054A has been discontinued
Discontinued July 5, 2019
This product was discontinued by the manufacturer.
MANUALS (1)
Direct Replacement:
Product Highlights
–
115V
1725 RPM
CWLE
1/2 HP
8 Amps
Description
–
6-1/2" Single Speed Evaporative Cooler Motor (115V, 1725 RPM, 8A, 1/2 HP)
The evaporative cooler motor provides all the features needed to insure long, trouble-free life under the high moisture atmosphere of evaporative cooler duty.
Features:
Applications: Belt Driven Evaporative Coolers readily acknowledged as the leading supplier to the residential and commercial evaporative cooler market, Century offers moisture resistant features including plated hardware and switch parts, fungus treatment and double dip varnish treatment. These features provide the best buy for the customer.
The evaporative cooler motor provides all the features needed to insure long, trouble-free life under the high moisture atmosphere of evaporative cooler duty.
Features:
- Brass current carrying terminal board parts
- Electro-zinc plated governor parts, dust caps, terminal board cover
- High viscosity encapsulating varnish
- No frame ventilation openings in the top portion of the frame
- Single and two speed
- Moisture resistant terminal board
- Heavy magnet wire insulation
- Class B insulation
- Continuous filtration of oil
- 7-1/2" ring to ring dimension
Applications: Belt Driven Evaporative Coolers readily acknowledged as the leading supplier to the residential and commercial evaporative cooler market, Century offers moisture resistant features including plated hardware and switch parts, fungus treatment and double dip varnish treatment. These features provide the best buy for the customer.
Specs
–
| Frame: | 56Z |
|---|---|
| Horse Power: | 1/2 |
| Voltage: | 115V |
| RPM: | 1725 |
| Bearings: | Ball |
| Speeds: | 1 |
| Rotation: | CWLE |
| Phase: | 1 |
| Amperage: | 8 |
| Insulation Class: | B |
| Enclosure Type: | Open Drip Proof |
