Description

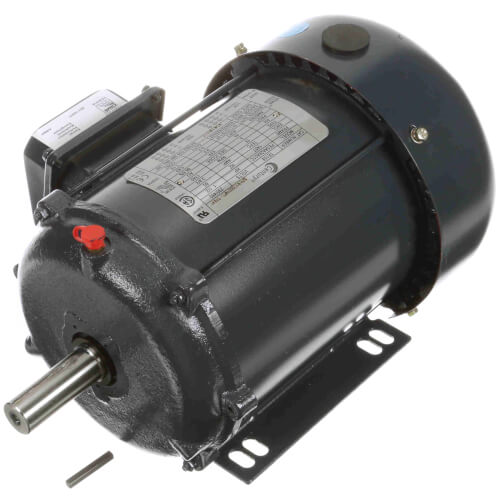

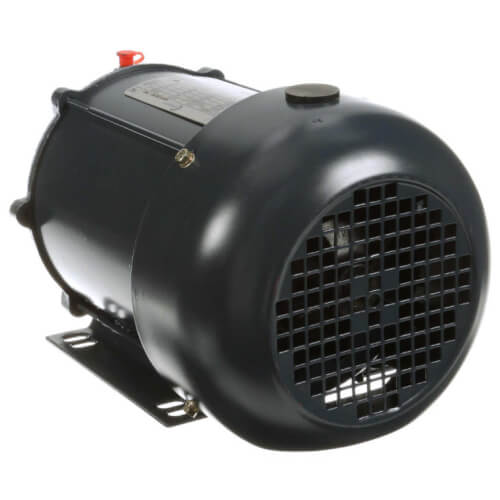

PSC Motor, 1 HP, 1800 RPM, Reversible (200-230/460V)

Features:
  • Applications: Pumps, fans, compressors, conveyors, machine tools, designed to stand up to abusive treatment...moist, dirty, dusty and factory applications
  • Ball Bearings
  • Continuous Duty
  • Energy Efficient
  • NEMA Design B
  • Totally Enclosed
  • 40º C Ambient
  • No Protector
  • 56 Frame and larger
  • Rigid Base
  • Squirrel Cage
  • E+ Motors meet the requirements of the Energy Policy Act of 1992. E+3 motors exceed the requirements of the Energy Policy Act of 1992. E+3(NP) is NEMA Premium Efficient.

***Note: Image may not be actual representation of item .
Hide Description
Specs
Product Type:

Motor

Type:

Polyphase

Horse Power:

1-1/2

Voltage:

208v

208-230/460v

Speeds:

1

Duty:

Continuous

Mount:

Rigid Base

Phase:

3

Rotation:

Reversible

Hertz:

60

Frame:

145T

Bearings:

Ball

Amperage:

1.95

RPM:

1740

Enclosure Type:

Totally Enclosed Fan-Cooled (TEFC)

Insulation Class:

F

Overload Protection:

None

Poles:

4

Max Ambient Temp (°F):

104°F

×
