TO111 has been discontinued
Discontinued September 9, 2024
This product was discontinued by the manufacturer.
Direct Replacement:
3 Phase General Purpose Motor, 145T Frame (230/460V, 1750 RPM, 2 HP)
Product Highlights
–
208-230/460v
1730 RPM
Reversible
2 HP
Rigid Base
5 Amps
Description
–

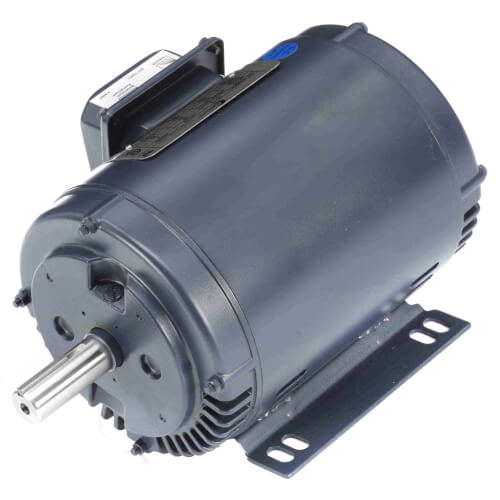

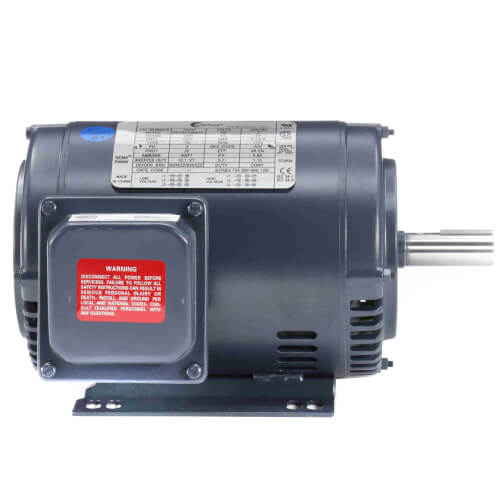

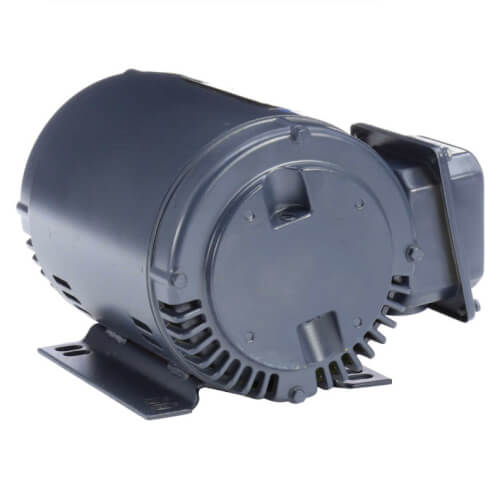

PSC Motor, 2 HP, 1725 RPM, Reversible (208-230/460V)
Features:
***Note: Image may not be actual representation of item .
Features:
- Applications: Pumps, fans, compressors, conveyors, machine tools, designed to stand up to abusive treatment...moist, dirty, dusty and factory applications
- Ball Bearings
- Continuous Duty
- Energy Efficient
- NEMA Design B
- Totally Enclosed
- 40º C Ambient
- No Protector
- 56 Frame and larger
- Rigid Base
- Squirrel Cage
- E+ Motors meet the requirements of the Energy Policy Act of 1992. E+3 motors exceed the requirements of the Energy Policy Act of 1992. E+3(NP) is NEMA Premium Efficient.
***Note: Image may not be actual representation of item .
Specs
–
| Product Type: | Motor |
|---|---|
| Type: | Polyphase |
| Horse Power: | 2 |
| Voltage: | 208-230/460v |
| Duty: | Continuous |
| Speeds: | 1 |
| Rotation: | Reversible |
| Mount: | Rigid Base |
| Phase: | 3 |
| Hertz: | 60 |
| Frame: | 145T |
| Amperage: | 5 |
| Bearings: | Ball |
| Enclosure Type: | Open Drip Proof |
| Insulation Class: | F |
| RPM: | 1730 |
| Overload Protection: | None |
| Poles: | 4 |
| Max Ambient Temp (°F): | 104°F |
