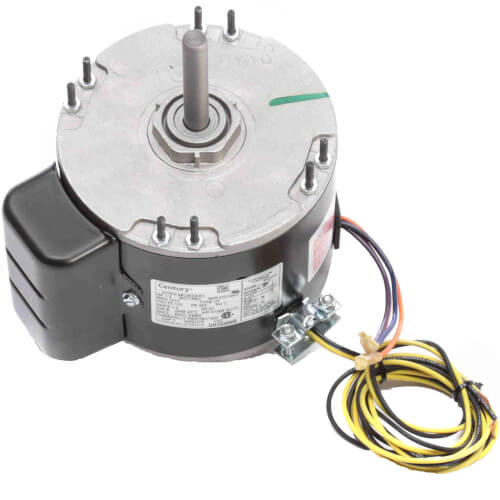

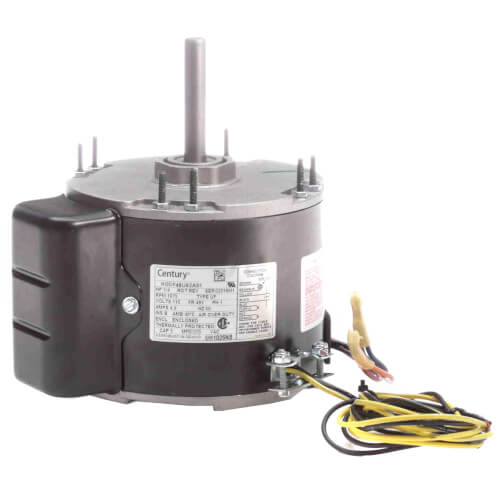

Main product image of 5-5/8" Totally Enclosed Fan/Blower Motor, No Base (4.9A, 115V, 1075 RPM, 1/4 HP)

Hover image to zoom

5-5/8" Totally Enclosed Fan/Blower Motor, No Base (4.9A, 115V, 1075 RPM, 1/4 HP)

Name: 5-5/8" Totally Enclosed Fan/Blower Motor, No Base (4.9A, 115V, 1075 RPM, 1/4 HP)
Brand: Century
SKU: UH1026NB
Price: 251.12 USD
Availability: OutOfStock

Brand:

Century

SKU:

UH1026NB

Rating:

(0)

Q&A:

(0)

5-5/8" Totally Enclosed Fan/Blower Motor, No Base (4.9A, 115V, 1075 RPM, 1/4 HP)

Hover image to zoom

UH1026NB has been discontinued

Discontinued September 18, 2025

This product was discontinued by the manufacturer.

MANUALS (1)

Brochure

Product Highlights

–

115V

1075 RPM

Reversible

1/4 HP

Extended Studs

4.9 Amps

Description

–

Note: This model is 40C Ambient and has 60" leads.

Features:

Continuous Duty, Air Over
Permanent Split Capacitor
Thermally Protected
60 Hz
48Y Frame
1/4 HP
1075 RPM
115 Volt
4.9 Amps
Encl. TE
Rotation: REV.
Ball Bearing
Capacitor Furnished
1 Speed
No Base

Specs

–

Type:	Permanent Split Capacitor
Horse Power:	1/4
Voltage:	115V
Duty:	Air Over
Poles:	6
RPM:	1075
Mount:	Extended Studs
Bearings:	Ball
Enclosure Type:	Totally Enclosed
Rotation:	Reversible
Hertz:	60
Speeds:	1
Frame:	48Y
Amperage:	4.9
Insulation Class:	B
Phase:	1
Overload Protection:	Automatic
Max Ambient Temp (°F):	104°F
Motor Orientation:	Horizontal
