Entra Single Zone 12,000 BTU SEER2 18 Ductless Mini Split Air Conditioner and Heat Pump, R-32 (Package)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (1)
Lift Gate
Product Highlights
Description
In compliance with the AIM Act of 2020, this product is designed for use with A2L appliances only. This product is NOT to be used in the installation or repair of an R410A appliances.

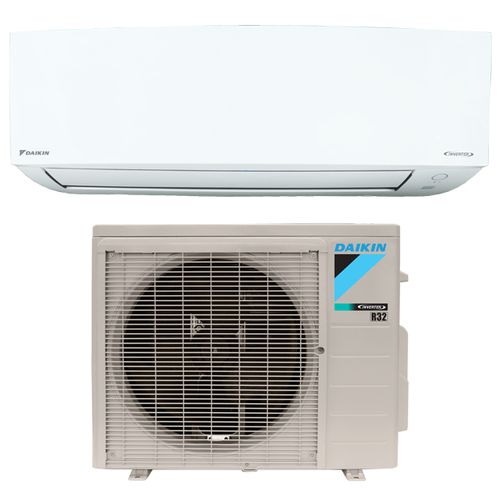

This product is a mini split package that includes both an indoor unit and outdoor unit.
Indoor Unit Description (FTXC12AXVJU)
Benefits:
- 10 year limited parts and compressor warranty with online registration
Features:
- Titanium apatite photocatalytic air purifying filter
- Daikin Swing Compressor
- Inverter Compressor

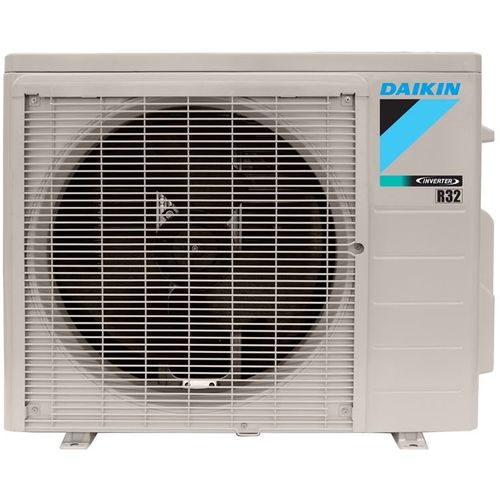

Outdoor Unit Description (RXC12AXVJU)
Benefits:
- 10 year limited parts warranty with online registration
Features:
- Operating Range - Cooling (50° - 114.8°)
Note: As of January 1, 2023 the US Department of Energy released a new SEER2 standard that provides manufacturers guidance in measuring the efficiency of their HVAC units.
The US Department of Energy divided the country into 3 regions (North, Southeast, and Southwest) and established energy efficient standards for each.
Please check the SEER2 site to ensure efficiency compliance for your region.
Specs
| Application: | Cooling Heating |
|---|---|
| EER2: | 8.5 |
| Number of Zones: | 1 |
| Energy Star Rated: | No |
| HSPF2: | 9 |
| Cooling Capacity (BTU): | 12000 |
| Refrigerant Type: | R-32 |
| Suction Line: | 3/8" |
| Heating Capacity (BTU): | 11300 |
| Model: | Entra |
| Liquid Line: | 1/4" |
| Warranty: | 10 Year (Parts) |
| Product Type: | Bundle |
| SEER2: | 18 |
| Mount: | Wall |
| Phase: | 1 |
| Voltage: | 208/230V |
