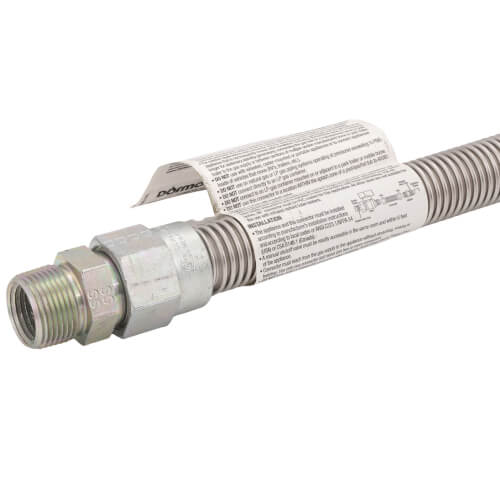

Model 40-4142-24 3/4" ID (1" OD) High BTU Stainless Steel Gas Connector 3/4" MIP x 3/4" FIP (24" Length)

Model 40-4142-24 3/4" ID (1" OD) High BTU Stainless Steel Gas Connector 3/4" MIP x 3/4" FIP (24" Length)

This 1 inch OD, 3/4 inch ID, durable, corrosion-resistant stainless steel gas connector is configured with 3/4 inch MIP x 3/4 inch FIP adapters and is 24 inches in length. Designed with safety in mind, this CSA approved gas connector is commonly used for the installation of appliances requiring a high BTU.

Features:

• Tubing Annealed, 304 stainless steel (ASTM A240)
• Flare nuts - Brass or plated steel
• Adapters - Brass or plated steel
• Approved for indoor and outdoor use
• Operating temperature with adapters: -40°F to 150°F
• 100% leak tested
• When installing a new appliance or when an existing appliance is moved to a new location a NEW gas connector must be used per manufacturer’s installation instructions and per product standards ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27.
• Avoid repeated bending, flexing, or extreme vibration. Do not use on portable gas generators due to excessive vibration
• Not suitable for moveable installations. Not NSF certified.
• Designed for high BTU demand
• Exclusive No-Neck® design increases flexibility
• CSA design-certified Durable 304 stainless steel tubing
• More corrugations per inch increase flexibility and extend service life

Applications:

• Boilers
• Gas Meters
• Furnaces
• Commercial

Water Heaters:

• Gas packs/Rooftop HVAC units
• Tankless Water Heater
• Stationary Standby Gas Generators
• Specifically designed for application with a significant BTU requirement. Can supply up to 1.5 million BTU (natural gas) or 2.4 million (propane), depending on length.
• Eliminates the need for pipe nipples, 90’s and elbows.
• Pre-fabricated gas connector means no field threading, cutting or assembly of CSST fitting and tubing.
• Available with hot-dipped PVC coating with antimicrobial agent, SafetyShield yellow coating, or Stainless Steel.
