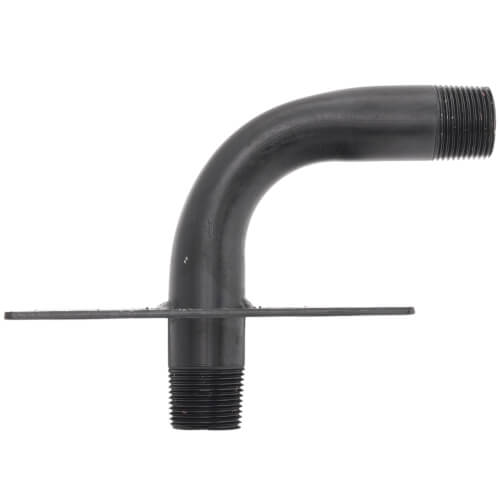

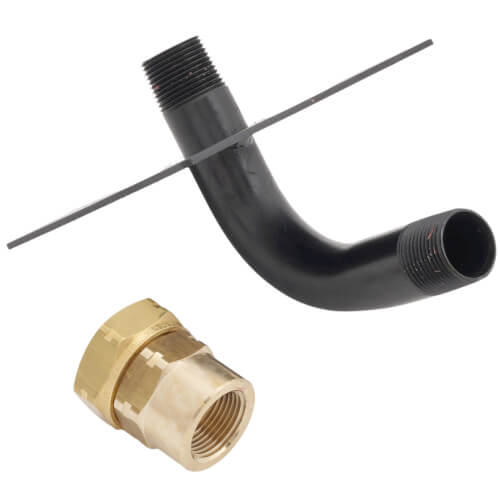

3/4" x 1-1/2" Stub Out x 3/4" Female NPT

Description:

FlashShield is metallically shielded corrugated stainless steel tubing system complying with ANSI LC 1" Fuel Gas Piping Systems Using CSST and listed with CSA, ICC and IAPMO. The FlashShield system is also listed to protective jacket standards, ICC-ES PMG LC1024, and LC1027. All mechanical tube fittings are SAE CA360 brass incorporating double wall flare sealing. The Jacket-LockTM and Metal locking features provide steel tubing protection and continuous conductivity.

Applications:

• All Stubs create a fixed point "stub-out" on a wall or floor surface for meter and appliance attachment.

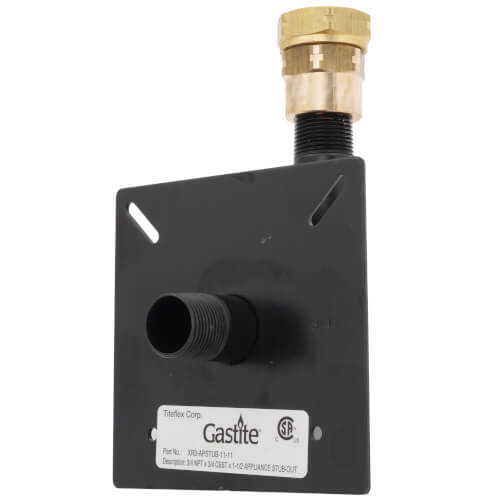

• Angle Stub-Out mounting plate provided at a 72-1/2 degree angle to facilitate mounting to angled side of most fireplace inserts.

 Features:

• Reduces the number of joints in the system where contractors typically fabricate “stub-outs” from rigid pipe nipples, elbows and couplings.
• Provides a fixed-point termination for installations where the appliances are not yet installed.
• Creates a more polished look to the overall installation.
• Fixed Point Termination with Female XR3 Fitting
• Approved for Concealed Use
• Tool-Less Flare Fitting Design
• Metal-to-Metal Seal
• Multi-Point Seal
• Self-Guiding Fitting Assembly
• Jacket-LockTM Feature
• Metal Locking Feature
• Fully Reusable Fitting

Listings:

• CSA: Certificate No. 2728525
• ICC-ES Report No. PMG 1066 and PMG 1155
• IAPMO: File No. C-3250 and Report No. 0239

Technical Data:

• Max. Approved Operating Pressure 25 psi
• Operating Temperature Range -40 Degree F to 160 Degree F
• Fitting Material CA360
• Stub-Out Material Sch 40 Steel pipe
• E-Coat
