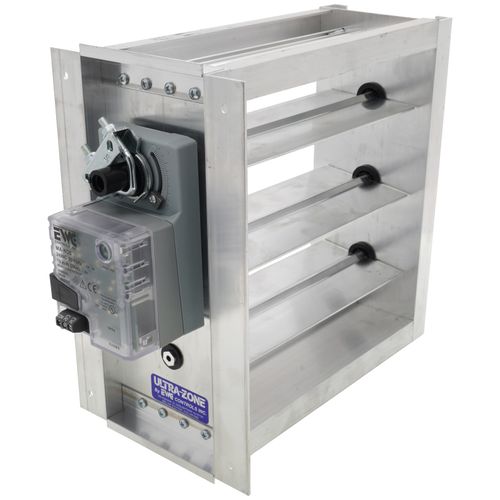

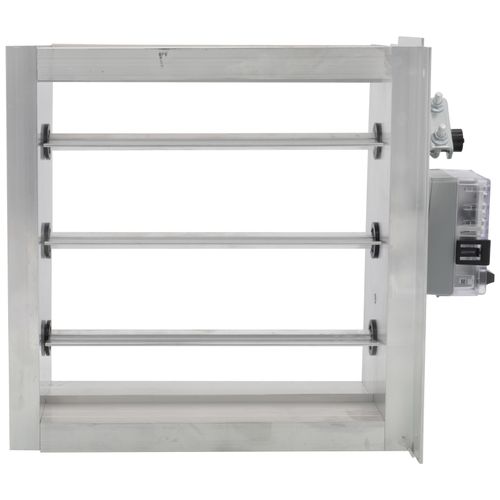

Main product image of 10" x 10" ND Motorized Damper
Magnifying glass
Hover image to zoom

10" x 10" ND Motorized Damper

Brand:
EWC Controls
SKU:
10X10ND
Rating:
(0)
Q&A:
(1)
10" x 10" ND Motorized Damper
Magnifying glass
Hover image to zoom
$211.65 each
In Stock
In Stock
Get 9 Mon, Oct 5
This item replaces: 10X10ND-NC, 10X10ND-NO
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Size
10" x 10"
Product Highlight: Shape
Rectangle
Product Highlight: Voltage
24V

Description

–
The ND series of Ultra-Zone dampers was designed with the installer and homeowner in mind. This damper is easy to install and easy to checkout. The LED display allows the installer to visually check the damper operation. With a sturdier frame, the damper installs in the duct much faster and easier and the nylon bushings insure quieter operation. This is a feature that homeowners will never hear about! Quieter operation and a longer life motor equals NO call backs.

Features:
  • Heavy Duty Frame
  • Nylon Bushings for Quieter Operation
  • Revolutionary Motor with greater Reliability
  • LED's to Show Damper Operation
  • Low Leakage
  • Simple 3-wire Hook-up

    • ***Motor is always mounted on second dimension specified

    Specs

    –
    Product Type:

    ND Motorized Damper

    Size:

    10" x 10"

    Voltage:

    24V

    Features:

    LED Light

    Shape:

    Rectangle

    Wires to Motor:

    3

    Motor Mount:

    Side

    Application:

    Air Quality

    Contact

    Help Face
    CALL US
    Question? Call or text 888-757-4774
    +
    Help Face

    Questions?

    Speak with a real person who will go out of the way to help!
    Call or text 888-757-4774
    Open Now:
    8:00am–7:45pm
    Monday – Thursday
    8am–7:45pm
    Friday
    9am–7:45pm
    Saturday – Sunday
    9am–5:45pm
    Response by Fri

    QUICK SUPPORT

    Order StatusShipping PolicyReturnsIs My Item in Stock?Request Item for Site

    Compare Similar Products

    Brand
    Size
    Voltage
    Features
    Shape
    Wires to Motor
    CURRENT ITEM
    Product Image of 10" x 10" ND Motorized Damper
    10" x 10" ND Motorized Damper
    SKU: 10X10ND
    EWC Controls
    10" x 10"
    24V
    LED Light
    Rectangle
    3
    10 in. x 10 in. TrueZONE Square Parallel Blade Damper
    SKU: ZD10X10TZ
    Honeywell Home
    10" x 10"
    24V
    Adjustable Range Stops
    Square
    2

    You May Also Need

    12" x 12" ND Motorized Damper
    SKU: 12X12ND
    EWC Controls

    Product Q&A

    1 Question
    1 Question
    ASK A QUESTION

    Q: Does the EWC 8" x 28" Damper open with spring and close with 24v power? I see it has 3 wires. Jim

    Asked by Jim 14 years ago

    Add your answer

    * Required Field
    -

    I don't think it has a spring? It seems to be powered in both directions. I am just the homeowner...sorry if I couldn't help. b

    Was this review helpful to you?
    -

    No, its the floating point type. One wire is your common, The other is turns the motor ccw with 24vac the other wire turns it cw with 24vac. There's no spring return.

    Was this review helpful to you?
    -

    No. This a power-to-open and power-to-close damper. It is why it has three terminals: one wire for opening, another wire for closing, and the third wire is common. All terminals are marked clearly to identify which wire where. The damper uses electricity only for opening and closing. I have similar dampers in my hose. I like them, so far so good. The motor has mechanical and electrical (LED) indicators of its position. Keep in mind that the damper motor is not watertight and must be kept away from condensation (no water dripping on/in the motor).

    Was this review helpful to you?
    -

    Just call to EWC Tech. Support help line. ( all info and phone numbers from Google)

    Was this review helpful to you?
