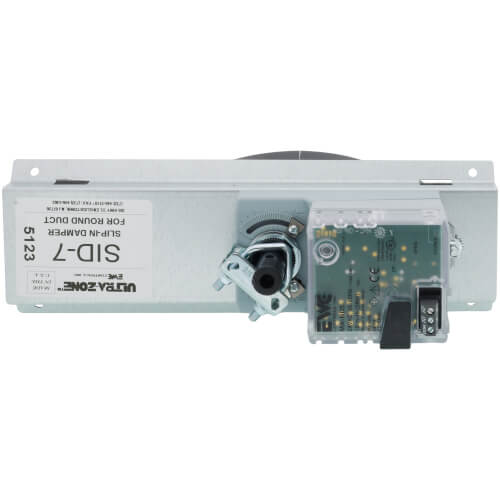

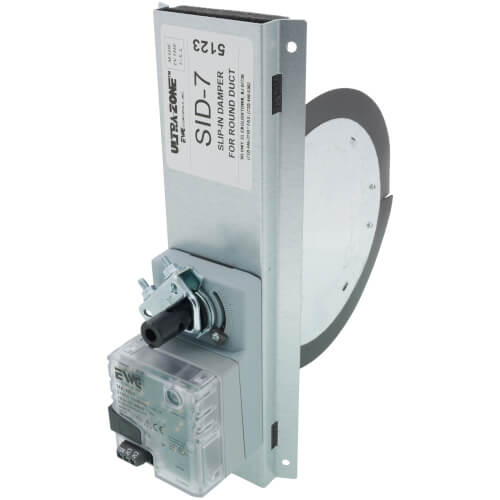

7" SID Motorized Slip-In-Damper
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$133.62 each
In Stock
Get 3 Tomorrow, Jun 16
Order by 6PM, receive Tomorrow
MANUALS (1)
This item replaces: 7SID-NC
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
7"
Round
24V
Description
–

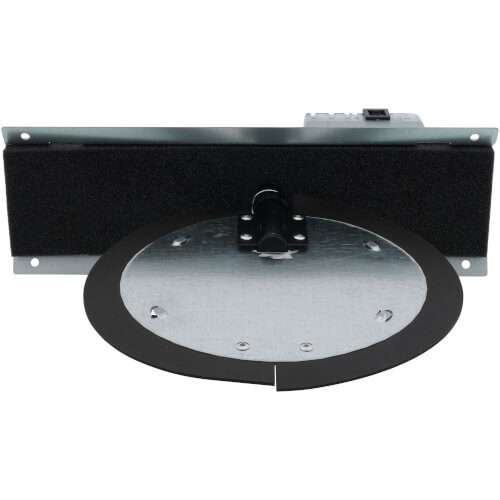

The SID Series of round motorized dampers are designed for
the Retro-Fit market. The SID damper easily slips into a
1 1/4" slot cut into the existing round duct. The damper has a
double layered blade design with an integrated cellular foam
sealing gasket. The superior design insures long life and no
maintenance. SID dampers are easy to install, easy to wire,
and come with a 5 year warranty. It is designed to operate at static pressures up to 1? w.c. @ < 5% leakage. The UL Listed
Motor Actuator is a 24vac 3 wire power open / power close
type rated at 18" in lbs. of torque. It includes an integrated
terminal block, and NEMA1 rated housing. The motor also
includes End-Stops for Min/Max position capability to allow
adjustment of the design CFM flow into a particular zone or
area. A travel Indicator and OPEN/CLOSE LED's are
included that provide visual indication of damper position.
The damper can be installed to orient motor at any angle.
Specs
–
| Product Type: | Slip-In-Damper |
|---|---|
| Size: | 7" |
| Application: | Air Quality |
| Voltage: | 24V |
| Features: | LED Light |
| Shape: | Round |
| Wires to Motor: | 3 |
