$442.50 each
In Stock
Get 23 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (4)
This item replaces: AEV1000
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
5"
120v
0.7 Amps
84 Watts
80 CFM
17-1/8"
Description
–
Note: This part does not include a heat recovery system which is necessary for certain ventilation uses.

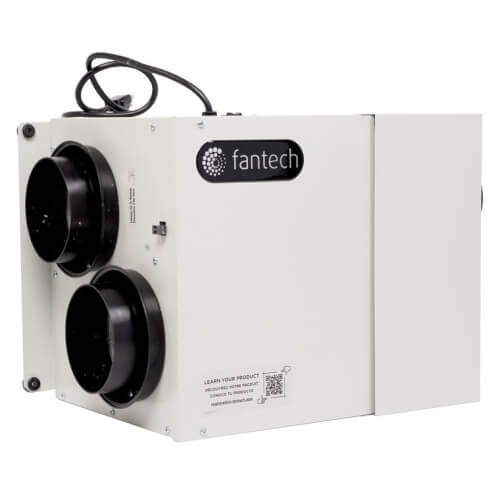

An Air Exchanger Ventilator (AEV) is designed to provide fresh air into a building while exhausting an equal amount of stale air. During the winter months, the incoming cold fresh air is warmed by mixing it with return air before it is supplied to the home. During summer months when the indoor space is air conditioned, the AEV will help in cooling the incoming fresh air with the stale air that is being exhausted.
Fantech AEV's are designed to run continuous or on intermittent, giving the homeowner complete control over their air quality. Continuous low speed ventilation is recommended, which will help eliminate carbon dioxide, VOCs and other gases as well as freshen up the home. Intermittent high speed ventilation can be obtained through a variety of optional remote controls.
Features:
- 80 cfm air exchanger
- Powder coated 22 gauge galvanized steel cabinet
- Insulated with 1" polystyrene foam to prevent condensation
- MERV8 Washable synthetic filter
- MERV13 filter (optional)
- External 3 position switch (Low/Standby/Medium)
- Dehumidistat MDEH1 included
- 3' plug-in power cord w/ 3-prong plug
- 5" supply and exhaust collars for ducting
Specs
–
| Duct Size: | 5" |
|---|---|
| Voltage: | 120v |
| Amperage: | 0.7 |
| Hertz: | 60 |
| Wattage: | 84 |
| Air Flow Capacity (CFM): | 80 |
| Length: | 17-1/8" |
| Width (Inches): | 12-1/2" |
| Height (Inches): | 14" |
| Weight (lbs): | 25 lbs |
| Warranty: | 7 Year Limited (Motor) 5 Year Limited (Electrical Components) |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
2 Replacement Parts
MERV8 Filter, 445222
SKU: 445222
Fantech
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.73 out of 11 reviews
100% would recommend this product
5 star
82%
4 star
9%
3 star
9%
2 star
0%
1 star
0%
Most Liked Positive Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Great Product works well
Installed this in a 900 square foot garage where I keep some vintage cars. Garage use to fill up with old car fumes so I install this system. Easy to install. Was a little concern because unit was just basically a box with a fan in it, but to my surprise when I returned after installing it I notice that the air is much fresher. Also I notice that the humidity and temperature never really changed even when it was cold or raining outside. Kept the garage at a comfortable fresh smell. Better to work in the garage when weather won't let me open the doors.
VS
Most Liked Negative Review
This one does not have heat recovery!
I read a bunch of descriptions and found this product in the middle of all the reading. It was the best priced. In the description there was one sentence that said "mixes stale air with fresh air to pre warm the fresh air" (I paraphrased there, not an actual quote) since all the others had heat recovery, I saw this as a typo. My bad. When the box showed up at my house it clearly says "W/O HEAT RECOVERY" on the printed label. I returned it because I needed heat recovery. In my opinion the advertisement and reading did not make it obvious that heat recovery was absent from this model. So I can't review the product. But I'm trying to save someone else the return shipping cost if they think they're buying an air changer with heat recovery, this one does not have it. Customer service was fast and easy to deal with once I found out my mistake!
Showing 1-10 of 11 reviews
I would buy this product again due to very good pricing.
I use this unit as an axially piece of equipment to enhance HVAC climate control of humify and heat recovery.
CWS
Killeen, TX
3 months ago
Verified Buyer
Was this review helpful to you?
This is the AEV that we always reconmend to our customers.
Has a great energy recovery percentage, works great and easy to install.
Cws Services
Killeen TX
4 months ago
Verified Buyer
Was this review helpful to you?
I use this model repeatly.
Easy to install & functions well.
CWS
Killeen TX 76542
4 months ago
Verified Buyer
Was this review helpful to you?
Great product at a great price.
Easy install, works great, I have bought at least 10 of these and all have worked great.
CWS Services
Killeen TX
9 months ago
Verified Buyer
Was this review helpful to you?
I would buy this product again.
Great unit, simple to install and works very well with the air-handler.
CWS Services
Killeen TX
10 months ago
Verified Buyer
Was this review helpful to you?
Great Product!
We bought this to lower the radon in a small office. I hooked it up to the A/C system it is doing everything we hoped.
Sammy B.
Athens Ga
2 years ago
Verified Buyer
Was this review helpful to you?
Yes
Affordable
Adair
Massachusetts
2 years ago
Verified Buyer
Was this review helpful to you?
Great value,
Easy to install, multi mounting angles is a plus, and great price.
CWS Services
Killeen, Texas
2 years ago
Verified Buyer
Was this review helpful to you?
This one does not have heat recovery!
I read a bunch of descriptions and found this product in the middle of all the reading. It was the best priced. In the description there was one sentence that said "mixes stale air with fresh air to pre warm the fresh air" (I paraphrased there, not an actual quote) since all the others had heat recovery, I saw this as a typo. My bad. When the box showed up at my house it clearly says "W/O HEAT RECOVERY" on the printed label. I returned it because I needed heat recovery. In my opinion the advertisement and reading did not make it obvious that heat recovery was absent from this model. So I can't review the product. But I'm trying to save someone else the return shipping cost if they think they're buying an air changer with heat recovery, this one does not have it. Customer service was fast and easy to deal with once I found out my mistake!
Remington
Michigan
3 years ago
Verified Buyer
Was this review helpful to you?
yes
worked great
steve
gwinn mi
5 years ago
Verified Buyer
Was this review helpful to you?
