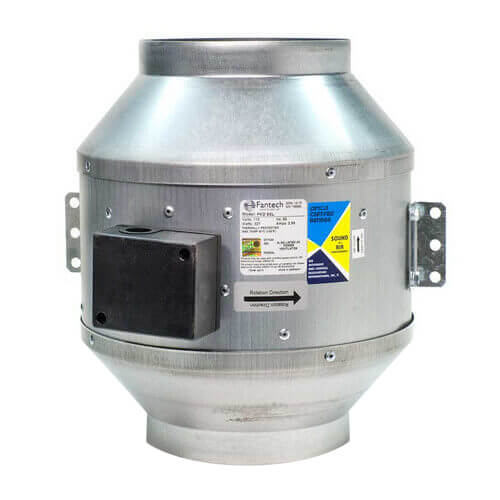

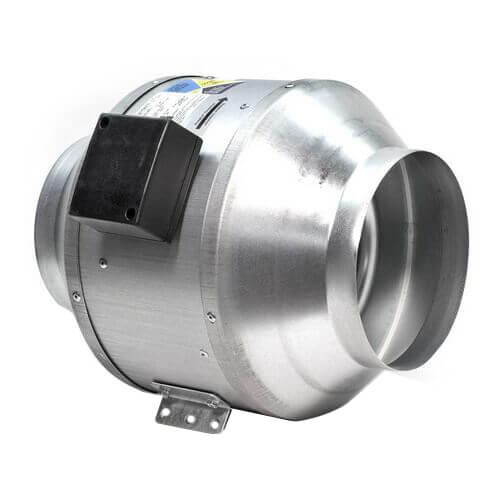

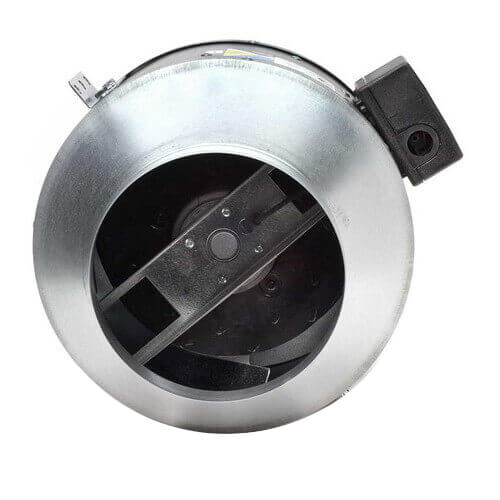

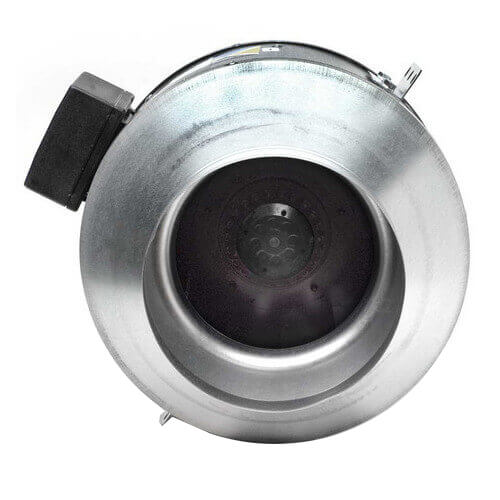

FKD Series Round Inline Mixed Flow Centrifugal Fan, 8" Duct 230V (836 CFM)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$909.16 each
In Stock
Get 1 Mon, Jun 15
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2.99
836 CFM
3 Year Warranty
8"
230V
2700 RPM
Description
–
Fantech FKD direct drive, mixed flow centrifugal fans blend the high flow of axial fans with the higher pressure, non-overloading characteristics of backward curved impellers. An excellent choice for exhaust or supply applications where quieter performance and easy installation are important. Perfect for commercial and institutional structures such as offices, hospitals, beauty salons, veterinary clinics as well as residential applications such as kitchen range hood exhaust.
FKD straight-through inline design fans are available in a wide range of sizes for easy installation in duct sizes from 8? to 20?. Fans can be mounted at any angle at any point along the duct work. Motors are capable of operating in airstream temperatures up to 140° F. Motor bearings are permanently sealed, self lubricating ball type.
FKD straight-through inline design fans are available in a wide range of sizes for easy installation in duct sizes from 8? to 20?. Fans can be mounted at any angle at any point along the duct work. Motors are capable of operating in airstream temperatures up to 140° F. Motor bearings are permanently sealed, self lubricating ball type.
Specs
–
| Duct Size: | 8" |
|---|---|
| Voltage: | 230V |
| RPM: | 2700 |
| Air Flow Capacity (CFM): | 836 |
| Rated Watts: | 327 |
| Max. Amps: | 2.99 |
| Housing Material: | Galvanized Steel |
| Warranty: | 3 Year |
