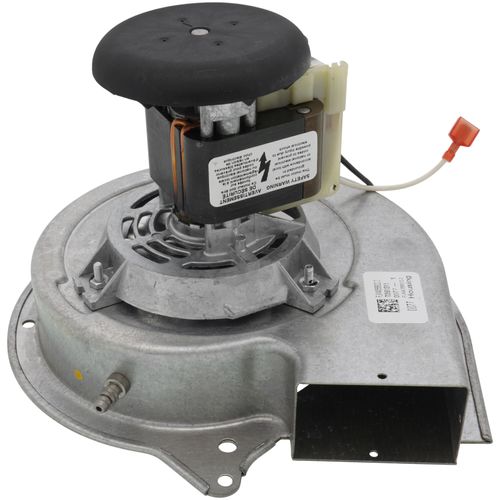

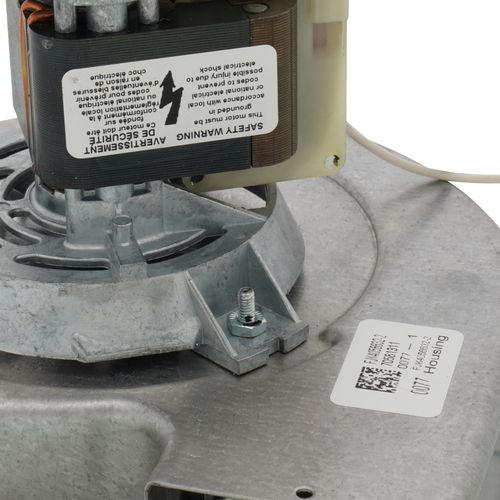

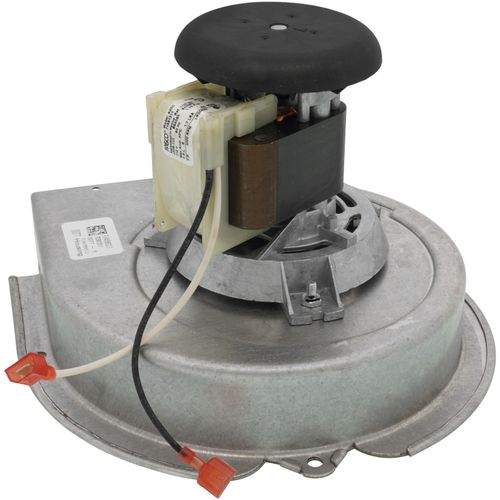

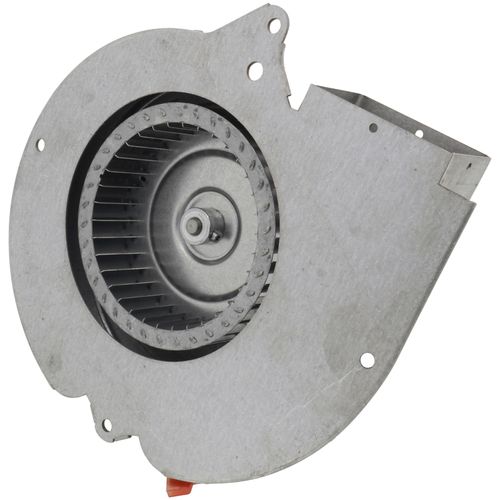

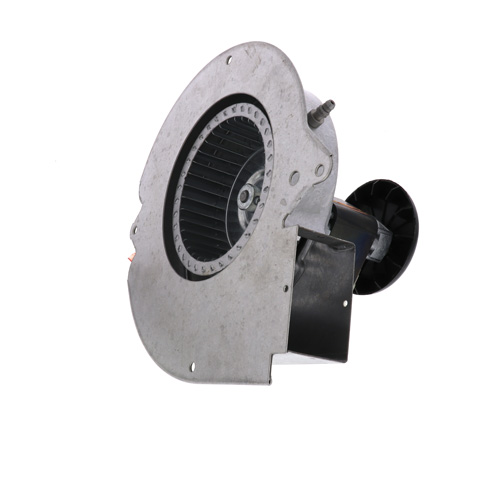

1-Speed 1/30 HP 3000 RPM Lennox Inducer Motor (115V)
This aftermarket replacement inducer motor operates at 1/30 HP, 3000 RPM on 115 volts. Designed for Lennox furnaces, it replaces part number 7002-2975. Confirm compatibility with your original manufacturer part number before ordering. Image may not represent actual product.
Key Features & Benefits
Compatibility & Requirements
Verify that the existing motor matches all specifications including voltage, horsepower, RPM, rotation direction, bearing type, and mounting configuration. Installation should be performed by a qualified HVAC technician familiar with gas furnace service procedures. Replace the inducer gasket during installation, as the original fiberglass gasket typically deteriorates upon removal. Installation must comply with local electrical and mechanical codes. Ensure proper venting and combustion air supply per manufacturer specifications and local codes.
Installation & Care
Disconnect all electrical power at the circuit breaker before beginning work. Remove the furnace access panel and locate the inducer motor assembly. Disconnect the motor wiring harness and remove mounting screws securing the motor to the blower housing. Carefully extract the old motor and inspect the housing gasket surface for debris or damage. Install the new gasket onto the motor outlet, ensuring proper alignment with the housing. Position the new motor and secure with the original mounting hardware. Reconnect the wiring harness, matching wire colors or terminal designations. Restore power and observe the motor during startup for proper rotation direction and normal operating sound. Check all connections for air leaks around the gasket. Clean the motor exterior periodically to prevent dust buildup that can reduce cooling efficiency.
What's Included
Frequently Asked Questions
Q: Will this motor fit my Lennox furnace if the original part number is 7002-2975?
A: Yes, the Fasco A200 is designed as a direct replacement for Lennox part number 7002-2975, matching all electrical and mounting specifications.
Q: Do I need to replace the gasket when installing this inducer motor?
A: Yes, the original fiberglass gasket typically falls apart during motor removal, so a new gasket is required to prevent exhaust leaks.
| Voltage: | 115V |
|---|---|
| Speeds: | 1 |
| Amperage: | 1.95 |
| Horse Power: | 1/30 |
| OEM: | Lennox |
| RPM: | 3000 |
| Bearings: | Sleeve |
| Rotation: | CCW |
| Type: | Shaded Pole |
| Outlet Shape: | Rectangle |
| Outlet Flange: | No |
| Approvals: | CSA UL |
| Hertz: | 60 |
| Max Ambient Temp (°F): | 104°F |
| Enclosure Type: | Open |
| Insulation Class: | B |
| Overload Protection: | Thermally |
| Phase: | 1 |
