D410 has been discontinued
Discontinued March 10, 2025
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
115V
3000 RPM
Reversible
1/10 HP
Extended Studs
1.5 Amps
Description
–

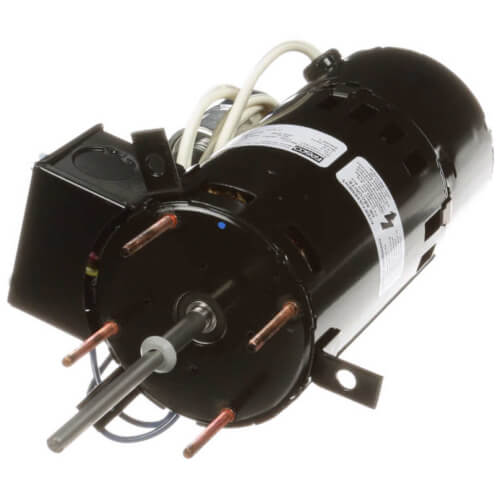

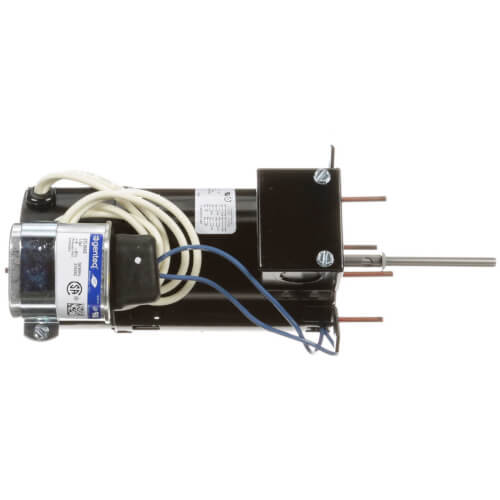

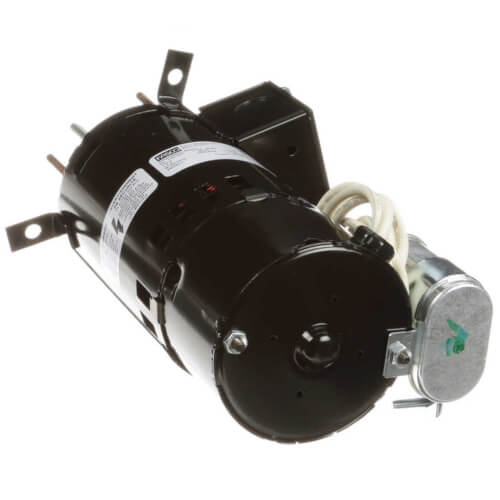

D410 1 Speed 3000 RPM Reversible Motor (115V)
Features:
**Note: Image may not represent actual product**
Features:
- Motor Type: Permanent Split Capacitor
- Phase: Single Phase
- Thermal Protection: Automatic
- Speeds: 1
- Rotation: REV
- Bearings: Ball
- Enclosure Type: Open
- Frame Size: 3.3" Frame
- Motor Diameter (In.): 3.3
- Shaft (In.): 1/4 x 3-3/4
- Ship Weight: 5.5 lbs.
- Agency Approvals: UL, CSA
**Note: Image may not represent actual product**
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Horse Power: | 1/10 |
| Voltage: | 115V |
| RPM: | 3000 |
| Speeds: | 1 |
| Amperage: | 1.5 |
| Rotation: | Reversible |
| Enclosure Type: | Open Air Over |
| Mount: | Extended Studs |
| Width: | 7-1/8" |
| Phase: | 1 |
| Frame Size: | 3.3 |
| Bearings: | Ball |
| Max Ambient Temp (°F): | 104°F |
| Duty: | Air Over |
| Frequency: | 60 Hz |
| Insulation Class: | B |
| Poles: | 2 |
| Overload Protection: | Thermally |
| Approvals: | UL |
