$132.60 each
In Stock
Order by today, receive Tuesday
This item replaces: F1036S
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208V, 230V
1075 RPM
Reversible
1/3 HP
2.9 Amps
Description
–

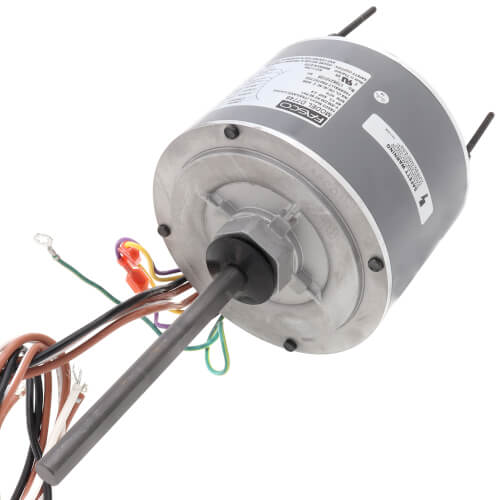

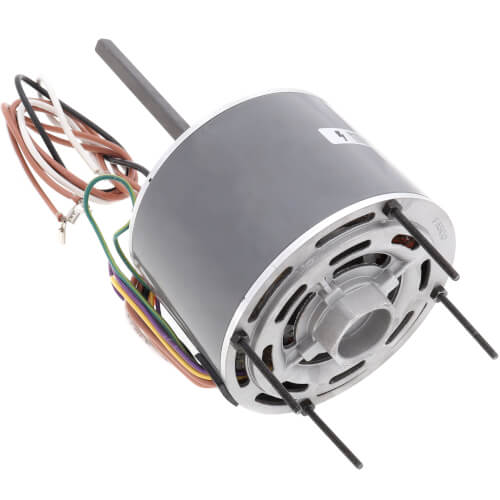

Used for vertical or horizontal shaft applications where the motor is located in the airstream
Features:
Features:
- PSC, 208-230V, open, air over
- Closed on shaft end, open on opposite shaft end
- Thermally protected
- Capacitor not included
- Motor Type: Permanent Split Capacitor
- Phase: Single Phase
- Thermal Protection: Automatic
- Speeds: 1
- Rotation: Reversible
- Bearings: Ball
- Enclosure Type: Open
- Frame Size: 5.6" Frame
- Motor Diameter (In.): 5.6
- Motor Length (In.): 4 1/4
- Shaft (In.): 1/2 X 6 1/2
- Bolt Circle (In.): 5-6/32 (5.2)
- Ship Weight: 15 lbs.
- Agency Approvals: UL, CSA
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Horse Power: | 1/3 |
| Voltage: | 208V 230V |
| RPM: | 1075 |
| Speeds: | 1 |
| Amperage: | 2.9 |
| Enclosure Type: | Open Ventilated Air Over |
| Rotation: | Reversible |
| Bearings: | Ball |
| Width: | 4-1/4" |
| Hertz: | 60 |
